版主能帮忙适配个tp-link wdr5700的bootloader吗？

[terra]

我这个配置生产出来的uboot 然后把superwrt_boot_netgear_wndr4500_v3_20170619.img中0x1c380中的值，覆盖进去也是按复位键的时候 系统led会闪几下 然后应该是进去uboot的信号 不过电脑也是无法获取ip的。

两个地方需要确认，一个是按照你的截图不选"使用switch划分出的PHY"，另一个是需要先连好网线，可以尝试将PC的网口强制到10M试一下。

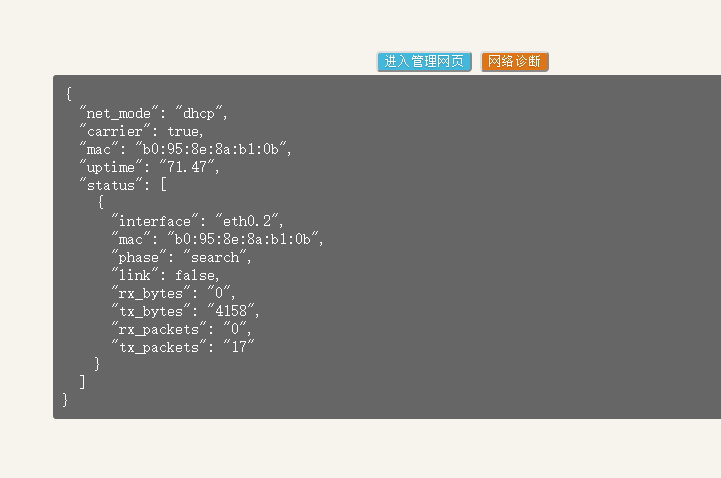

取消了 "使用switch划分出的PHY" 之后可以进去uboot了 并且不按复位键是不会进去的 ，刷了固件之后 出现无法获取ip这样的情况 ，自己手动设置也不好使，无法访问192.168.17.1 ， 在几次开机的过程中有一次是可以获取ip的 然后访问192.168.17.1 出现以下画面


不好意思，漏了一个问题，所有接口都作为Switch工作也不要勾，目前要勾的是：
作为WAN接口;
使用VLAN的划分WAN与LAN;
使用SGMII连接芯片。
再根据你的硬件，选择是否勾“将Port0作为WAN口(默认为Port4)”。

[x140_g]

两个地方需要确认，一个是按照你的截图不选"使用switch划分出的PHY"，另一个是需要先连好网线，可以尝试将PC的网口强制到10M试一下。

取消了 "使用switch划分出的PHY" 之后可以进去uboot了 并且不按复位键是不会进去的 ，刷了固件之后 出现无法获取ip这样的情况 ，自己手动设置也不好使，无法访问192.168.17.1 ， 在几次开机的过程中有一次是可以获取ip的 然后访问192.168.17.1 出现以下画面


不好意思，漏了一个问题，所有接口都作为Switch工作也不要勾，目前要勾的是：
作为WAN接口;
使用VLAN的划分WAN与LAN;
使用SGMII连接芯片。
再根据你的硬件，选择是否勾“将Port0作为WAN口(默认为Port4)”。

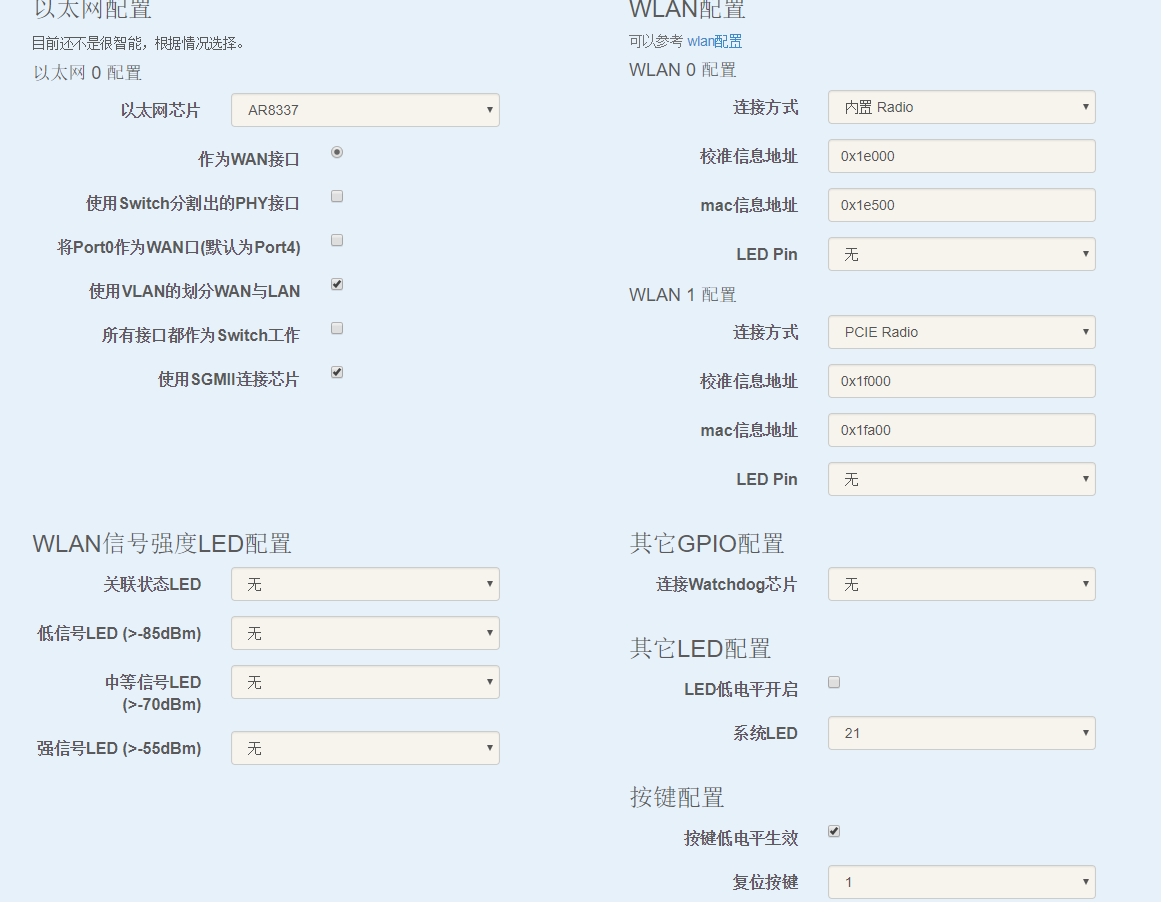

根据你的指导 配置如下 图


还添加了

gpio 22 ttl data out
gpio 19 ttl data in

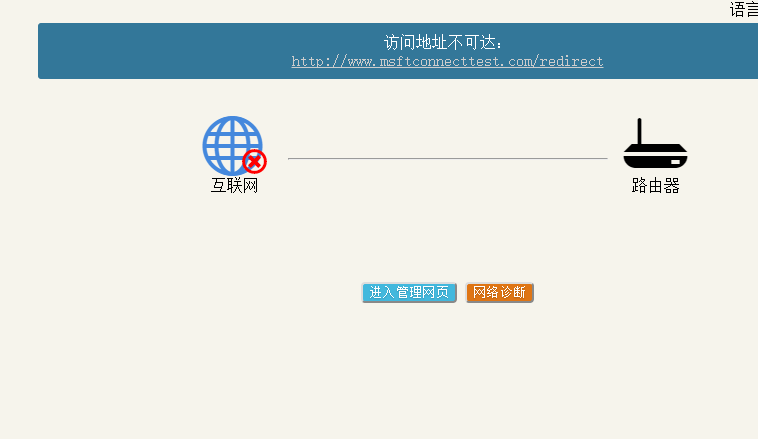

2个 生成uboot之后 在插的ttl 线而且是插反的情况下 会进到下图界面



然后就进不去了

[x140_g]

终于有些东西可以让你看看了


[ 0.460000] console [ttyS0] enabled
[ 0.460000] console [ttyS0] enabled
[ 0.468000] bootconsole [early0] disabled
[ 0.468000] bootconsole [early0] disabled
[ 0.492000] m25p80 spi0.0: found s25fl064k, expected m25p80
[ 0.496000] m25p80 spi0.0: s25fl064k (8192 Kbytes)
[ 0.504000] 9 cmdlinepart partitions found on MTD device spi0.0
[ 0.508000] Creating 9 MTD partitions on "spi0.0":
[ 0.512000] 0x000000000000-0x00000001c000 : "uboot"
[ 0.520000] 0x00000001c000-0x000000020000 : "SBI"
[ 0.524000] 0x000000020000-0x0000007a0000 : "firmware"
[ 0.532000] Split rootfs Part: off:0x15d2e8 len:0x642d18
[ 0.536000] 0x00000015d2e8-0x0000007a0000 : "rootfs"
[ 0.544000] 1 squashfs-split partitions found on MTD device rootfs
[ 0.548000] 0x000000368000-0x0000007a0000 : "rootfs_data"
[ 0.556000] mtd: device 3 (rootfs) set to be root filesystem
[ 0.560000] 0x0000007a0000-0x0000007b0000 : "elog"
[ 0.568000] mtdoops: Attached to MTD device 5
[ 0.572000] 0x0000007b0000-0x0000007c0000 : "config"
[ 0.576000] 0x0000007c0000-0x0000007d0000 : "config2"
[ 0.584000] 0x0000007d0000-0x0000007e0000 : "custom"
[ 0.588000] 0x0000007e0000-0x0000007f0000 : "DTB"
[ 0.596000] 0x0000007f0000-0x000000800000 : "CAL"
[ 0.612000] switch0: Atheros AR8337 rev. 2 switch registered on ag71xx-mdio.0
[ 0.692000] libphy: ag71xx_mdio: probed. phys=0x01ff001f
[ 1.268000] eth0: Atheros AG71xx at 0xb9000000, irq 4, mode:SGMII
[ 1.272000] PPP generic driver version 2.4.2
[ 1.280000] PPP MPPE Compression module registered
[ 1.284000] NET: Registered protocol family 24
[ 1.288000] PPTP driver version 0.8.5
[ 1.292000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.300000] ehci-pci: EHCI PCI platform driver
[ 1.304000] ehci-platform: EHCI generic platform driver
[ 1.308000] ehci-platform ehci-platform.0: EHCI Host Controller
[ 1.316000] ehci-platform ehci-platform.0: new USB bus registered, assigned bus number 1
[ 1.324000] ehci-platform ehci-platform.0: irq 48, io mem 0x1b000000
[ 1.344000] ehci-platform ehci-platform.0: USB 2.0 started, EHCI 1.00
[ 1.348000] hub 1-0:1.0: USB hub found
[ 1.352000] hub 1-0:1.0: 1 port detected
[ 1.356000] ehci-platform ehci-platform.1: EHCI Host Controller
[ 1.364000] ehci-platform ehci-platform.1: new USB bus registered, assigned bus number 2
[ 1.376000] ehci-platform ehci-platform.1: irq 49, io mem 0x1b400000
[ 1.392000] ehci-platform ehci-platform.1: USB 2.0 started, EHCI 1.00
[ 1.396000] hub 2-0:1.0: USB hub found
[ 1.400000] hub 2-0:1.0: 1 port detected
[ 1.404000] usbcore: registered new interface driver usblp
[ 1.412000] usbcore: registered new interface driver usb-storage
[ 1.420000] input: gpio-keys-polled as /devices/platform/gpio-keys-polled/input/input0
[ 1.428000] Netfilter messages via NETLINK v0.30.
[ 1.432000] nf_conntrack version 0.5.0 (944 buckets, 3776 max)
[ 1.440000] xt_time: kernel timezone is -0000
[ 1.444000] gre: GRE over IPv4 demultiplexor driver
[ 1.448000] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 1.456000] TCP: cubic registered
[ 1.460000] NET: Registered protocol family 10
[ 1.464000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 1.472000] NET: Registered protocol family 17
[ 1.476000] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
[ 1.488000] Ebtables v2.0 registered
[ 1.492000] 8021q: 802.1Q VLAN Support v1.8
[ 1.504000] VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
[ 1.512000] Freeing unused kernel memory: 208K (803fc000 - 80430000)
init started: BusyBox v1.22.1 (2017-06-21 14:37:16 CST)
starting pid 350, tty '': 'sh /etc/init.d/rcS S start'
mount: mounting usbfs on /proc/bus/usb failed: No such file or directory
mount: mounting nodev on /sys/kernel/debug failed: No such file or directory
Fri Jan 1 00:00:00 UTC 2010
[ 3.464000] SQUASHFS error: xz decompression failed, data probably corrupt
[ 3.468000] SQUASHFS error: squashfs_read_data failed to read block 0xe4bd6
[ 3.476000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 3.484000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
[ 3.492000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 3.496000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
[ 3.504000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 3.512000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
[ 3.516000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 3.524000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
[ 3.532000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 3.540000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
spkg: '/lib/libhssl.so' is not an ELF file
spkg: can't load library 'libhssl.so'
[ 3.560000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 3.568000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
spkg: '/lib/libhssl.so' is not an ELF file
spkg: can't load library 'libhssl.so'
Try backup config
[ 3.588000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 3.592000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
spkg: '/lib/libhssl.so' is not an ELF file
spkg: can't load library 'libhssl.so'
[ 3.632000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 3.640000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 3.652000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 3.660000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 3.672000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 3.680000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 3.712000] Loading modules backported from Linux version wt-2016-10-03-1-g6fcb1a6
[ 3.720000] Backport generated by backports.git backports-20160324-9-g0e38f5c
[ 4.152000] swd: module license 'Proprietary' taints kernel.
[ 4.156000] Disabling lock debugging due to kernel taint
[ 4.164000] SuperWRT Network Engine installed!
[ 4.432000] ieee80211 phy0: Atheros AR9561 Rev:0 mem=0xb8100000, irq=47
[ 4.612000] PCI: Enabling device 0000:00:00.0 (0000 -> 0002)
[ 4.620000] ath10k_pci 0000:00:00.0: pci irq legacy oper_irq_mode 1 irq_mode 0 reset_mode 0
[ 4.816000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/pre-cal-pci-0000:00:00.0.bin failed with error -2
[ 4.828000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/cal-pci-0000:00:00.0.bin failed with error -2
[ 5.060000] ath10k_pci 0000:00:00.0: qca9887 hw1.0 target 0x4100016d chip_id 0x004000ff sub 0000:0000
[ 5.068000] ath10k_pci 0000:00:00.0: kconfig debug 0 debugfs 0 tracing 0 dfs 1 testmode 0
[ 5.080000] ath10k_pci 0000:00:00.0: firmware ver 10.2.4-1.0-00013 api 5 features no-p2p,ignore-otp,skip-clock-init,mfp crc32 14a57ac6
[ 5.136000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/QCA9887/hw1.0/board-2.bin failed with error -2
[ 5.144000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/QCA9887/hw1.0/board.bin failed with error -2
[ 5.156000] ath10k_pci 0000:00:00.0: board_file api 1 bmi_id N/A crc32 00000000
[ 5.252000] ath10k_pci 0000:00:00.0: failed to get board id form OTP: -122
[ 6.240000] ath10k_pci 0000:00:00.0: htt-ver 2.1 wmi-op 5 htt-op 2 cal file max-sta 128 raw 0 hwcrypto 1
[ 6.384000] SQUASHFS error: xz decompression failed, data probably corrupt
[ 6.388000] SQUASHFS error: squashfs_read_data failed to read block 0xe4bd6
[ 6.396000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 6.404000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 6.472000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 6.480000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 6.524000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 6.532000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 6.544000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 6.552000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 6.568000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 6.576000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an EL[ 6.584000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
F file
svld: ca[ 6.592000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
n't load library 'libhssl.so'
s[ 6.604000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
vld: '/lib/libhs[ 6.612000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
sl.so' is not an ELF file
svld:[ 6.624000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
can't load libr[ 6.628000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
ary 'libhssl.so'
svld: '/lib/li[ 6.640000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
bhssl.so' is not[ 6.648000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
an ELF file
svld: can't load l[ 6.660000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
ibrary 'libhssl.[ 6.664000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library [ 6.692000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
'libhssl.so'
[ 6.704000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an EL[ 6.712000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
F file
svld: ca[ 6.720000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
n't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld:[ 6.736000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
can't load libr[ 6.744000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
ary 'libhssl.so'
svld: '/lib/li[ 6.752000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
bhssl.so' is not[ 6.760000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file[ 6.776000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]

svld: can't loa[ 6.784000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
d library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 6.896000] SQUASHFS error: xz decompression failed, data probably corrupt
[ 6.904000] SQUASHFS error: squashfs_read_data failed to read block 0xe4bd6
[ 6.912000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 6.920000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an EL[ 6.928000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
F file
svld: ca[ 6.936000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
n't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 7.060000] SQUASHFS error: xz decompression failed, data probably corrupt
[ 7.068000] SQUASHFS error: squashfs_read_data failed to read block 0xe4bd6
[ 7.076000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 7.080000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 7.128000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 7.136000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an EL[ 7.144000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
F file
svld: ca[ 7.152000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
n't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 7.192000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 7.200000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an EL[ 7.208000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
F file
svld: ca[ 7.216000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
n't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld:[ 7.232000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
can't load libr[ 7.236000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
ary 'libhssl.so'
svld: '/lib/li[ 7.248000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
bhssl.so' is not[ 7.256000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is [ 7.272000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
not an ELF file[ 7.280000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98

svld: can't load library 'libhs[ 7.288000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
sl.so'
svld: '/[ 7.296000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld:[ 7.312000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
'/lib/libhssl.s[ 7.320000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
o' is not an ELF file
svld: can[ 7.328000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
't load library [ 7.336000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load libra[ 7.352000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
ry 'libhssl.so'[ 7.360000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98

svld: '/lib/libhssl.so' is not [ 7.368000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
an ELF file
svl[ 7.376000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
d: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
[ 7.392000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
svld: can't load[ 7.400000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
library 'libhssl.so'
svld: '/l[ 7.408000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
ib/libhssl.so' i[ 7.416000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
s not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so[ 7.432000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
' is not an ELF [ 7.440000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
file
svld: can't load library '[ 7.448000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
libhssl.so'
svl[ 7.456000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
d: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 7.472000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
svld: '/lib/libh[ 7.480000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
ssl.so' is not an ELF file
svld[ 7.492000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
: can't load lib[ 7.496000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
rary 'libhssl.so'
svld: '/lib/libhssl.so' is no[ 7.508000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
t an ELF file
s[ 7.516000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
vld: can't load library 'libhssl[ 7.528000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
.so'
svld: '/li[ 7.536000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
b/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '[ 7.548000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
/lib/libhssl.so'[ 7.556000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld:[ 7.580000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
can't load libr[ 7.588000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
ary 'libhssl.so'
svld: '/lib/libhssl.so' is not[ 7.600000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
an ELF file
sv[ 7.608000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
ld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file[ 7.624000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]

svld: can't loa[ 7.632000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
d library 'libhssl.so'
svld: '/[ 7.640000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
lib/libhssl.so' [ 7.648000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.s[ 7.664000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
o' is not an ELF[ 7.672000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
file
svld: can't load library [ 7.684000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
'libhssl.so'
sv[ 7.688000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
ld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'[ 7.704000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]

svld: '/lib/lib[ 7.712000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
hssl.so' is not an ELF file
svl[ 7.724000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
d: can't load li[ 7.728000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
brary 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load[ 7.744000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
library 'libhss[ 7.752000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
l.so'
svld: '/lib/libhssl.so' i[ 7.764000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
s not an ELF fil[ 7.768000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
e
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
mv: can't rename '/tmp/swrt/proc/389/cfg.json': No such file or directory
[ 7.820000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 7.828000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an EL[ 7.840000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
F file
svld: ca[ 7.848000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
n't load library 'libhssl.so'
s[ 7.860000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
vld: '/lib/libhs[ 7.864000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
sl.so' is not an ELF file
svld:[ 7.876000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
can't load libr[ 7.884000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
ary 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 7.924000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 7.932000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
[ 8.052000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
[ 8.056000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
svld: '/lib/libhssl.so' is not an EL[ 8.068000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
F file
svld: ca[ 8.076000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
n't load library 'libhssl.so'
s[ 8.084000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
vld: '/lib/libhs[ 8.092000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
sl.so' is not an ELF file
svld:[ 8.104000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
can't load libr[ 8.112000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
ary 'libhssl.so'
svld: '/lib/li[ 8.120000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
bhssl.so' is not[ 8.128000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
an ELF file
svld: can't load l[ 8.140000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
ibrary 'libhssl.[ 8.148000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
so'
svld: '/lib/libhssl.so' is [ 8.156000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
not an ELF file[ 8.164000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98

svld: can't load library 'libhs[ 8.176000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
sl.so'
svld: '/[ 8.184000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
lib/libhssl.so' is not an ELF fi[ 8.192000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
le
svld: can't [ 8.200000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
load library 'libhssl.so'
svld:[ 8.212000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
'/lib/libhssl.s[ 8.220000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
o' is not an ELF file
svld: can[ 8.228000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
't load library [ 8.236000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
'libhssl.so'
svld: '/lib/libhss[ 8.248000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
l.so' is not an [ 8.256000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
ELF file
svld: can't load libra[ 8.264000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
ry 'libhssl.so'[ 8.272000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98

svld: '/lib/libhssl.so' is not [ 8.284000] SQUASHFS error: Unable to read fragment cache entry [e4bd6]
an ELF file
svl[ 8.292000] SQUASHFS error: Unable to read page, block e4bd6, size 8f98
d: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
svld: '/lib/libhssl.so' is not an ELF file
svld: can't load library 'libhssl.so'
cp: can't stat '/tmp/spool/cron/crontabs/root': No such file or directory
[ 8.396000] random: crond urandom read with 44 bits of entropy available

Please press Enter to activate this console. Jan 1 00:00:06 crond[625]: crond: crond (busybox 1.22.1) started, log level 8. random: 3305970612.
[ 30.020000] random: nonblocking pool is initialized

[x140_g]

我是编程器写进去的uboot 应该不存在分区更换吧 因为都没有分区。

[x140_g]

这次又不一样了

[ 0.460000] console [ttyS0] enabled
[ 0.460000] console [ttyS0] enabled
[ 0.468000] bootconsole [early0] disabled
[ 0.468000] bootconsole [early0] disabled
[ 0.492000] m25p80 spi0.0: found s25fl064k, expected m25p80
[ 0.496000] m25p80 spi0.0: s25fl064k (8192 Kbytes)
[ 0.500000] 9 cmdlinepart partitions found on MTD device spi0.0
[ 0.508000] Creating 9 MTD partitions on "spi0.0":
[ 0.512000] 0x000000000000-0x00000001c000 : "uboot"
[ 0.520000] 0x00000001c000-0x000000020000 : "SBI"
[ 0.524000] 0x000000020000-0x0000007a0000 : "firmware"
[ 0.532000] Split rootfs Part: off:0x15d2e8 len:0x642d18
[ 0.536000] 0x00000015d2e8-0x0000007a0000 : "rootfs"
[ 0.540000] 1 squashfs-split partitions found on MTD device rootfs
[ 0.548000] 0x000000368000-0x0000007a0000 : "rootfs_data"
[ 0.556000] mtd: device 3 (rootfs) set to be root filesystem
[ 0.560000] 0x0000007a0000-0x0000007b0000 : "elog"
[ 0.568000] mtdoops: Attached to MTD device 5
[ 0.572000] 0x0000007b0000-0x0000007c0000 : "config"
[ 0.576000] 0x0000007c0000-0x0000007d0000 : "config2"
[ 0.584000] 0x0000007d0000-0x0000007e0000 : "custom"
[ 0.588000] 0x0000007e0000-0x0000007f0000 : "DTB"
[ 0.596000] 0x0000007f0000-0x000000800000 : "CAL"
[ 0.612000] switch0: Atheros AR8337 rev. 2 switch registered on ag71xx-mdio.0
[ 0.692000] libphy: ag71xx_mdio: probed. phys=0x01ff001f
[ 1.268000] eth0: Atheros AG71xx at 0xb9000000, irq 4, mode:SGMII
[ 1.272000] PPP generic driver version 2.4.2
[ 1.280000] PPP MPPE Compression module registered
[ 1.284000] NET: Registered protocol family 24
[ 1.288000] PPTP driver version 0.8.5
[ 1.292000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.300000] ehci-pci: EHCI PCI platform driver
[ 1.304000] ehci-platform: EHCI generic platform driver
[ 1.308000] ehci-platform ehci-platform.0: EHCI Host Controller
[ 1.316000] ehci-platform ehci-platform.0: new USB bus registered, assigned bus number 1
[ 1.324000] ehci-platform ehci-platform.0: irq 48, io mem 0x1b000000
[ 1.344000] ehci-platform ehci-platform.0: USB 2.0 started, EHCI 1.00
[ 1.348000] hub 1-0:1.0: USB hub found
[ 1.352000] hub 1-0:1.0: 1 port detected
[ 1.356000] ehci-platform ehci-platform.1: EHCI Host Controller
[ 1.364000] ehci-platform ehci-platform.1: new USB bus registered, assigned bus number 2
[ 1.376000] ehci-platform ehci-platform.1: irq 49, io mem 0x1b400000
[ 1.392000] ehci-platform ehci-platform.1: USB 2.0 started, EHCI 1.00
[ 1.396000] hub 2-0:1.0: USB hub found
[ 1.400000] hub 2-0:1.0: 1 port detected
[ 1.404000] usbcore: registered new interface driver usblp
[ 1.412000] usbcore: registered new interface driver usb-storage
[ 1.420000] input: gpio-keys-polled as /devices/platform/gpio-keys-polled/input/input0
[ 1.428000] Netfilter messages via NETLINK v0.30.
[ 1.432000] nf_conntrack version 0.5.0 (944 buckets, 3776 max)
[ 1.440000] xt_time: kernel timezone is -0000
[ 1.444000] gre: GRE over IPv4 demultiplexor driver
[ 1.448000] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 1.456000] TCP: cubic registered
[ 1.460000] NET: Registered protocol family 10
[ 1.464000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 1.472000] NET: Registered protocol family 17
[ 1.476000] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
[ 1.488000] Ebtables v2.0 registered
[ 1.492000] 8021q: 802.1Q VLAN Support v1.8
[ 1.504000] VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
[ 1.512000] Freeing unused kernel memory: 208K (803fc000 - 80430000)
init started: BusyBox v1.22.1 (2017-06-21 14:37:16 CST)
starting pid 350, tty '': 'sh /etc/init.d/rcS S start'
mount: mounting usbfs on /proc/bus/usb failed: No such file or directory
mount: mounting nodev on /sys/kernel/debug failed: No such file or directory
Fri Jan 1 00:00:00 UTC 2010
Try backup config
[ 3.588000] Loading modules backported from Linux version wt-2016-10-03-1-g6fcb1a6
[ 3.596000] Backport generated by backports.git backports-20160324-9-g0e38f5c
[ 3.864000] SQUASHFS error: xz decompression failed, data probably corrupt
[ 3.868000] SQUASHFS error: squashfs_read_data failed to read block 0x16ae56
[ 3.900000] SQUASHFS error: xz decompression failed, data probably corrupt
[ 3.908000] SQUASHFS error: squashfs_read_data failed to read block 0x16ae56
insmod: can't insert 'mac80211.ko': Bad address
[ 3.980000] swd: module license 'Proprietary' taints kernel.
[ 3.984000] Disabling lock debugging due to kernel taint
[ 3.992000] swd: Unknown symbol rate_control_set_rates (err 0)
[ 4.000000] swd: Unknown symbol ieee80211_rx_hook_register (err 0)
[ 4.004000] swd: Unknown symbol ieee80211_start_tx_ba_session (err 0)
[ 4.012000] swd: Unknown symbol ieee80211_rx_hook_unregister (err 0)
[ 4.016000] swd: Unknown symbol ieee80211_rate_control_unregister (err 0)
[ 4.024000] swd: Unknown symbol ieee80211_rate_control_register (err 0)
[ 4.032000] swd: Unknown symbol __ieee80211_nullfunc_get (err 0)
[ 4.036000] swd: Unknown symbol __ieee80211_tx_skb_tid_band (err 0)
[ 4.044000] swd: Unknown symbol ieee80211_set_locmode (err 0)
[ 4.052000] swd: Unknown symbol _ieee80211_deliver_skb (err 0)
insmod: can't insert 'swd.ko': unknown symbol in[ 4.060000] swdgpl: Unknown symbol _swd_sbi_init (err 0)
module, or unkn[ 4.068000] swdgpl: Unknown symbol _swd_lic_init (err 0)
own parameter
[ 4.072000] swdgpl: Unknown symbol rc80211_priest_exit (err 0)
[ 4.080000] swdgpl: Unknown symbol rc80211_priest_init (err 0)
[ 4.088000] swdgpl: Unknown symbol proc_swd_fini (err 0)
[ 4.092000] swdgpl: Unknown symbol proc_swd_init (err 0)
[ 4.096000] swdgpl: Unknown symbol _swd_sbi_fini (err 0)
[ 4.104000] swdgpl: Unknown symbol _swd_webportal_init (err 0)
[ 4.108000] swdgpl: Unknown symbol g_sbi_tfm (err 0)
[ 4.116000] swdgpl: Unknown symbol g_webp_tfm (err 0)
[ 4.120000] swdgpl: Unknown symbol _swd_nscd_fini (err 0)
[ 4.124000] swdgpl: Unknown symbol g_lic_sha1_tfm (err 0)
[ 4.132000] swdgpl: Unknown symbol _swd_webportal_fini (err 0)
[ 4.136000] swdgpl: Unknown symbol _swd_iptable_init (err 0)
[ 4.144000] swdgpl: Unknown symbol _swd_nscd_init (err 0)
[ 4.148000] swdgpl: Unknown symbol _swd_stc_init (err 0)
[ 4.152000] swdgpl: Unknown symbol swdt_extend (err 0)
[ 4.160000] swdgpl: Unknown symbol _swd_iptable_fini (err 0)
[ 4.164000] swdgpl: Unknown symbol swd_regist_apicb (err 0)
[ 4.172000] swdgpl: Unknown symbol _swd_lic_fini (err 0)
[ 4.176000] swdgpl: Unknown symbol _swd_stc_fini (err 0)
insmod: can't insert 'swdgpl.ko': unknown symbol in module, or unknown parameter
[ 4.412000] ath9k: Unknown symbol ieee80211_start_tx_ba_cb_irqsafe (err 0)
[ 4.420000] ath9k: Unknown symbol ieee80211_tx_status_noskb (err 0)
[ 4.428000] ath9k: Unknown symbol ieee80211_free_hw (err 0)
[ 4.432000] ath9k: Unknown symbol ieee80211_register_hw (err 0)
[ 4.440000] ath9k: Unknown symbol __ieee80211_create_tpt_led_trigger (err 0)
[ 4.444000] ath9k: Unknown symbol ieee80211_sta_eosp (err 0)
[ 4.452000] ath9k: Unknown symbol __ieee80211_get_radio_led_name (err 0)
[ 4.460000] ath9k: Unknown symbol ieee80211_get_buffered_bc (err 0)
[ 4.464000] ath9k: Unknown symbol ieee80211_get_tx_rates (err 0)
[ 4.472000] ath9k: Unknown symbol ieee80211_send_bar (err 0)
[ 4.476000] ath9k: Unknown symbol ieee80211_sta_set_buffered (err 0)
[ 4.484000] ath9k: Unknown symbol priest_tx_drv_cost (err 0)
[ 4.488000] ath9k: Unknown symbol ieee80211_stop_tx_ba_cb_irqsafe (err 0)
[ 4.496000] ath9k: Unknown symbol wiphy_to_ieee80211_hw (err 0)
[ 4.504000] ath9k: Unknown symbol ieee80211_queue_delayed_work (err 0)
[ 4.508000] ath9k: Unknown symbol ieee80211_find_sta_by_ifaddr (err 0)
[ 4.516000] ath9k: Unknown symbol ieee80211_wake_queues (err 0)
[ 4.524000] ath9k: Unknown symbol ieee80211_free_txskb (err 0)
[ 4.528000] ath9k: Unknown symbol ieee80211_alloc_hw_nm (err 0)
[ 4.536000] ath9k: Unknown symbol ieee80211_tx_dequeue (err 0)
[ 4.540000] ath9k: Unknown symbol ieee80211_tx_status (err 0)
[ 4.548000] ath9k: Unknown symbol ieee80211_stop_queues (err 0)
[ 4.552000] ath9k: Unknown symbol ieee80211_iterate_active_interfaces_atomic (err 0)
[ 4.560000] ath9k: Unknown symbol ieee80211_unregister_hw (err 0)
[ 4.568000] ath9k: Unknown symbol ieee80211_beacon_get_tim (err 0)
[ 4.572000] ath9k: Unknown symbol priest_tx_drv_ratio (err 0)
[ 4.580000] ath9k: Unknown symbol ieee80211_radar_detected (err 0)
[ 4.588000] ath9k: Unknown symbol ieee80211_csa_is_complete (err 0)
[ 4.592000] ath9k: Unknown symbol ieee80211_queue_work (err 0)
[ 4.600000] ath9k: Unknown symbol ieee80211_csa_finish (err 0)
[ 4.604000] ath9k: Unknown symbol ieee80211_rx_napi (err 0)
insmod: can't insert 'ath9k.ko': unknown symbol in module, or unknown parameter
[ 4.728000] ath10k_core: Unknown symbol ieee80211_connection_loss (err 0)
[ 4.736000] ath10k_core: Unknown symbol ieee80211_txq_get_depth (err 0)
[ 4.744000] ath10k_core: Unknown symbol ieee80211_free_hw (err 0)
[ 4.748000] ath10k_core: Unknown symbol ieee80211_iterate_stations_atomic (err 0)
[ 4.756000] ath10k_core: Unknown symbol ieee80211_beacon_loss (err 0)
[ 4.764000] ath10k_core: Unknown symbol ieee80211_register_hw (err 0)
[ 4.768000] ath10k_core: Unknown symbol __ieee80211_create_tpt_led_trigger (err 0)
[ 4.776000] ath10k_core: Unknown symbol ieee80211_restart_hw (err 0)
[ 4.784000] ath10k_core: Unknown symbol ieee80211_wake_queue (err 0)
[ 4.792000] ath10k_core: Unknown symbol ieee80211_find_sta (err 0)
[ 4.796000] ath10k_core: Unknown symbol ieee80211_stop_rx_ba_session_offl (err 0)
[ 4.804000] ath10k_core: Unknown symbol ieee80211_tx_status_irqsafe (err 0)
[ 4.812000] ath10k_core: Unknown symbol ieee80211_iter_chan_contexts_atomic (err 0)
[ 4.820000] ath10k_core: Unknown symbol wiphy_to_ieee80211_hw (err 0)
[ 4.828000] ath10k_core: Unknown symbol ieee80211_queue_delayed_work (err 0)
[ 4.836000] ath10k_core: Unknown symbol ieee80211_proberesp_get (err 0)
[ 4.840000] ath10k_core: Unknown symbol ieee80211_find_sta_by_ifaddr (err 0)
[ 4.848000] ath10k_core: Unknown symbol ieee80211_remain_on_channel_expired (err 0)
[ 4.856000] ath10k_core: Unknown symbol ieee80211_wake_queues (err 0)
[ 4.864000] ath10k_core: Unknown symbol ieee80211_report_low_ack (err 0)
[ 4.868000] ath10k_core: Unknown symbol ieee80211_beacon_get_template (err 0)
[ 4.876000] ath10k_core: Unknown symbol ieee80211_free_txskb (err 0)
[ 4.884000] ath10k_core: Unknown symbol ieee80211_alloc_hw_nm (err 0)
[ 4.892000] ath10k_core: Unknown symbol ieee80211_tx_dequeue (err 0)
[ 4.896000] ath10k_core: Unknown symbol ieee80211_tx_status (err 0)
[ 4.904000] ath10k_core: Unknown symbol ieee80211_stop_queue (err 0)
[ 4.912000] ath10k_core: Unknown symbol ieee80211_ready_on_channel (err 0)
[ 4.916000] ath10k_core: Unknown symbol ieee80211_stop_queues (err 0)
[ 4.924000] ath10k_core: Unknown symbol ieee80211_scan_completed (err 0)
[ 4.932000] ath10k_core: Unknown symbol ieee80211_iterate_active_interfaces_atomic (err 0)
[ 4.940000] ath10k_core: Unknown symbol ieee80211_unregister_hw (err 0)
[ 4.948000] ath10k_core: Unknown symbol ieee80211_csa_update_counter (err 0)
[ 4.952000] ath10k_core: Unknown symbol ieee80211_beacon_get_tim (err 0)
[ 4.960000] ath10k_core: Unknown symbol ieee80211_start_rx_ba_session_offl (err 0)
[ 4.968000] ath10k_core: Unknown symbol ieee80211_radar_detected (err 0)
[ 4.976000] ath10k_core: Unknown symbol ieee80211_csa_is_complete (err 0)
[ 4.984000] ath10k_core: Unknown symbol ieee80211_queue_work (err 0)
[ 4.988000] ath10k_core: Unknown symbol ieee80211_csa_finish (err 0)
[ 4.996000] ath10k_core: Unknown symbol ieee80211_rx_napi (err 0)
insmod: can't insert 'ath10k_core.ko': unknown symbol in module,[ 5.008000] ath10k_pci: Unknown symbol ath10k_warn (err 0)
or unknown para[ 5.012000] ath10k_pci: Unknown symbol ath10k_err (err 0)
meter
[ 5.020000] ath10k_pci: Unknown symbol ath10k_print_driver_info (err 0)
[ 5.028000] ath10k_pci: Unknown symbol ath10k_htt_hif_tx_complete (err 0)
[ 5.036000] ath10k_pci: Unknown symbol ath10k_htc_tx_completion_handler (err 0)
[ 5.044000] ath10k_pci: Unknown symbol ath10k_core_create (err 0)
[ 5.048000] ath10k_pci: Unknown symbol ath10k_htt_rx_pktlog_completion_handler (err 0)
[ 5.056000] ath10k_pci: Unknown symbol ath10k_core_destroy (err 0)
[ 5.064000] ath10k_pci: Unknown symbol ath10k_htc_rx_completion_handler (err 0)
[ 5.072000] ath10k_pci: Unknown symbol ath10k_core_register (err 0)
[ 5.076000] ath10k_pci: Unknown symbol ath10k_info (err 0)
[ 5.084000] ath10k_pci: Unknown symbol ath10k_htt_t2h_msg_handler (err 0)
[ 5.092000] ath10k_pci: Unknown symbol ath10k_core_unregister (err 0)
[ 5.096000] ath10k_pci: Unknown symbol ath10k_htt_txrx_compl_task (err 0)
insmod: can't insert 'ath10k_pci.ko': unknown symbol in module, or unknown parameter
cat: can't open '/proc/swd/lic/wlan_super_density': No such file[ 5.232000] random: svld urandom read with 20 bits of entropy available
or directory
Load setting file error!!
Load setting file error!!
[ 5.584000] BUG: Bad page map in process svld pte:00ffb34b pmd:83b4e000
[ 5.592000] page:8103fec0 count:0 mapcount:-1 mapping: (null) index:0x0
[ 5.600000] flags: 0x4(referenced)
[ 5.604000] page dumped because: bad pte
[ 5.608000] addr:7770f000 vm_flags:00000075 anon_vma: (null) mapping:834b0c54 index:10
[ 5.616000] vma->vm_ops->fault: 0x800cc128
[ 5.620000] vma->vm_file->f_op->mmap: 0x800c9c04
[ 5.624000] CPU: 0 PID: 483 Comm: svld Tainted: P 3.18.47 #1
[ 5.632000] Stack : 00000006 00000004 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
...
[ 5.668000] Raw Call Trace:[<800731f8>] 0x800731f8
[ 5.672000] [<800731f8>] 0x800731f8
[ 5.676000] [<800e1240>] 0x800e1240
[ 5.680000] [<800c9c04>] 0x800c9c04
[ 5.684000] [<800e25f4>] 0x800e25f4
[ 5.688000] [<800e2f70>] 0x800e2f70
[ 5.692000] [<800ca670>] 0x800ca670
[ 5.696000] [<800d584c>] 0x800d584c
[ 5.700000] [<800e7ed8>] 0x800e7ed8
[ 5.704000] [<800efadc>] 0x800efadc
[ 5.704000] [<800ca958>] 0x800ca958
[ 5.708000] [<8006a880>] 0x8006a880
[ 5.712000] [<80080538>] 0x80080538
[ 5.716000] [<8006a8c8>] 0x8006a8c8
[ 5.720000] [<800836a4>] 0x800836a4
[ 5.724000] [<8006a8e8>] 0x8006a8e8
[ 5.728000] [<8008acfc>] 0x8008acfc
[ 5.732000] [<800f0ea8>] 0x800f0ea8
[ 5.736000] [<8009c618>] 0x8009c618
[ 5.740000] [<800848c8>] 0x800848c8
[ 5.740000] [<8008d40c>] 0x8008d40c
[ 5.744000] [<80071a3c>] 0x80071a3c
[ 5.748000] [<8008c794>] 0x8008c794
[ 5.752000] [<8008b4a8>] 0x8008b4a8
[ 5.756000] [<8006a8c8>] 0x8006a8c8
[ 5.760000] [<8007273c>] 0x8007273c
[ 5.764000] [<800609ac>] 0x800609ac
[ 5.768000]
[ 5.768000] Call Trace:
[ 5.772000] [<800731f8>] 0x800731f8
[ 5.776000]
Aborted
/etc/swrt/service/S32wlan/run: line 345: can't create /sys/module/mac80211/parameters/ieee80211_enhance_mask: nonexistent directory
ifconfig: SIOCSIFADDR: No such device
brctl: iface eth1: No such device
/etc/swrt/service/S34netlan/run: line 115: can't create /proc/swd/nscd/local_ip: nonexistent directory
/etc/swrt/service/S34netlan/run: line 115: can't create /proc/swd/webportal/gateway_ip: nonexistent directory
[ 6.596000] eth0: link up (1000Mbps/Full duplex)
/etc/swrt/service/S36netwan/run: line 68: can't create /proc/swd/nscd/dns_ips: nonexistent directory
udhcpc (v1.22.1) started
Setting IP address 0.0.0.0 on eth0
Sending discover...
/etc/swrt/service/S38netfwtc/run: line 6: can't create /proc/swd/stc/ifs_set: nonexistent directory
/etc/swrt/service/S38netfwtc/run: line 69: can't create /proc/swd/stc/ifs_set: nonexistent directory
/etc/swrt/service/S38netfwtc/run: line 72: can't create /proc/swd/stc/cfg_smart: nonexistent directory
/etc/swrt/service/S38netfwtc/run: line 1: can't create /proc/swd/stc/ifs_set: nonexistent directory
/etc/swrt/service/S38netfwtc/run: line 1: can't create /proc/swd/stc/ifs_set: nonexistent directory
/etc/swrt/service/S42netuser/run: line 2: can't create /proc/swd/stc/users_set: nonexistent directory
no schk found; none killed
/etc/swrt/service/S78webportal/run: line 8: can't create /proc/swd/webportal/interfaces: nonexistent directory
/etc/swrt/service/S78webportal/run: line 11: can't create /proc/swd/webportal/enable: nonexistent directory
no httpd found; none killed
Jan 1 08:00:04 crond[708]: crond: crond (busybox 1.22.1) started, log level 8. random: 4026637005.

Please press Enter to activate this console. Sending discover...
Sending discover...
[ 31.980000] random: nonblocking pool is initialized

[terra]

这两个的问题都是Firmware没完全写入。你在定制时，填入如下参数

代码: 全选

bootargs="console=ttyS0,115200 mtdparts=spi0.0:112k(uboot),4k(SBI),12k(CAL),64k(config),8000k(firmware)"

[x140_g]

这两个的问题都是Firmware没完全写入。你在定制时，填入如下参数

代码: 全选

bootargs="console=ttyS0,115200 mtdparts=spi0.0:112k(uboot),4k(SBI),12k(CAL),64k(config),8000k(firmware)"

还是 不行 ttl 如下 ：

[ 0.460000] console [ttyS0] enabled
[ 0.460000] console [ttyS0] enabled
[ 0.468000] bootconsole [early0] disabled
[ 0.468000] bootconsole [early0] disabled
[ 0.492000] m25p80 spi0.0: found s25fl064k, expected m25p80
[ 0.496000] m25p80 spi0.0: s25fl064k (8192 Kbytes)
[ 0.500000] 5 cmdlinepart partitions found on MTD device spi0.0
[ 0.508000] Creating 5 MTD partitions on "spi0.0":
[ 0.512000] 0x000000000000-0x00000001c000 : "uboot"
[ 0.520000] 0x00000001c000-0x00000001d000 : "SBI"
[ 0.524000] 0x00000001d000-0x000000020000 : "CAL"
[ 0.528000] 0x000000020000-0x000000030000 : "config"
[ 0.536000] 0x000000030000-0x000000800000 : "firmware"
[ 0.540000] Split rootfs Part: off:0x16d2e8 len:0x692d18
[ 0.548000] 0x00000016d2e8-0x000000800000 : "rootfs"
[ 0.552000] 1 squashfs-split partitions found on MTD device rootfs
[ 0.560000] 0x000000378000-0x000000800000 : "rootfs_data"
[ 0.564000] mtd: device 5 (rootfs) set to be root filesystem
[ 0.580000] switch0: Atheros AR8337 rev. 2 switch registered on ag71xx-mdio.0
[ 0.664000] libphy: ag71xx_mdio: probed. phys=0x01ff001f
[ 1.240000] eth0: Atheros AG71xx at 0xb9000000, irq 4, mode:SGMII
[ 1.244000] PPP generic driver version 2.4.2
[ 1.252000] PPP MPPE Compression module registered
[ 1.256000] NET: Registered protocol family 24
[ 1.260000] PPTP driver version 0.8.5
[ 1.264000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.272000] ehci-pci: EHCI PCI platform driver
[ 1.276000] ehci-platform: EHCI generic platform driver
[ 1.280000] ehci-platform ehci-platform.0: EHCI Host Controller
[ 1.288000] ehci-platform ehci-platform.0: new USB bus registered, assigned bus number 1
[ 1.296000] ehci-platform ehci-platform.0: irq 48, io mem 0x1b000000
[ 1.316000] ehci-platform ehci-platform.0: USB 2.0 started, EHCI 1.00
[ 1.320000] hub 1-0:1.0: USB hub found
[ 1.324000] hub 1-0:1.0: 1 port detected
[ 1.328000] ehci-platform ehci-platform.1: EHCI Host Controller
[ 1.336000] ehci-platform ehci-platform.1: new USB bus registered, assigned bus number 2
[ 1.348000] ehci-platform ehci-platform.1: irq 49, io mem 0x1b400000
[ 1.364000] ehci-platform ehci-platform.1: USB 2.0 started, EHCI 1.00
[ 1.368000] hub 2-0:1.0: USB hub found
[ 1.372000] hub 2-0:1.0: 1 port detected
[ 1.380000] usbcore: registered new interface driver usblp
[ 1.384000] usbcore: registered new interface driver usb-storage
[ 1.392000] input: gpio-keys-polled as /devices/platform/gpio-keys-polled/input/input0
[ 1.400000] Netfilter messages via NETLINK v0.30.
[ 1.404000] nf_conntrack version 0.5.0 (944 buckets, 3776 max)
[ 1.412000] xt_time: kernel timezone is -0000
[ 1.416000] gre: GRE over IPv4 demultiplexor driver
[ 1.420000] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 1.428000] TCP: cubic registered
[ 1.432000] NET: Registered protocol family 10
[ 1.436000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 1.444000] NET: Registered protocol family 17
[ 1.448000] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
[ 1.460000] Ebtables v2.0 registered
[ 1.464000] 8021q: 802.1Q VLAN Support v1.8
[ 1.476000] VFS: Mounted root (squashfs filesystem) readonly on device 31:5.
[ 1.484000] Freeing unused kernel memory: 208K (803fc000 - 80430000)
init started: BusyBox v1.22.1 (2017-06-21 14:37:16 CST)
starting pid 334, tty '': 'sh /etc/init.d/rcS S start'
mount: mounting usbfs on /proc/bus/usb failed: No such file or directory
mount: mounting nodev on /sys/kernel/debug failed: No such file or directory
Fri Jan 1 00:00:00 UTC 2010
cat: can't open '/var/run/watchdog.pid': No such file or directory
/etc/rc.d/S10boot: line 43: can't create /proc//oom_score_adj: nonexistent directory
[ 3.340000] BUG: Bad page map in process run.sh pte:00fe0313 pmd:83b23000
[ 3.344000] page:8103f800 count:0 mapcount:-1 mapping: (null) index:0x2
[ 3.352000] flags: 0x10(dirty)
[ 3.356000] page dumped because: bad pte
[ 3.360000] addr:004d7000 vm_flags:00100077 anon_vma:83af04d0 mapping: (null) index:4d7
[ 3.368000] CPU: 0 PID: 384 Comm: run.sh Not tainted 3.18.47 #1
[ 3.376000] Stack : 00000006 00000004 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
...
[ 3.412000] Raw Call Trace:[<800731f8>] 0x800731f8
[ 3.416000] [<800731f8>] 0x800731f8
[ 3.420000] [<800e1240>] 0x800e1240
[ 3.424000] [<800e25f4>] 0x800e25f4
[ 3.428000] [<800e2f70>] 0x800e2f70
[ 3.432000] [<800d584c>] 0x800d584c
[ 3.436000] [<800e7ed8>] 0x800e7ed8
[ 3.436000] [<8006a880>] 0x8006a880
[ 3.440000] [<80080538>] 0x80080538
[ 3.444000] [<8006a8e8>] 0x8006a8e8
[ 3.448000] [<800fa3c4>] 0x800fa3c4
[ 3.452000] [<80130bbc>] 0x80130bbc
[ 3.456000] [<800e9400>] 0x800e9400
[ 3.460000] [<800e0dd0>] 0x800e0dd0
[ 3.464000] [<800f98d4>] 0x800f98d4
[ 3.468000] [<800fac54>] 0x800fac54
[ 3.472000] [<80062b5c>] 0x80062b5c
[ 3.472000]
[ 3.476000] Call Trace:
[ 3.476000] [<800731f8>] 0x800731f8
[ 3.480000]
[ 3.484000] Disabling lock debugging due to kernel taint
[ 3.488000] BUG: Bad rss-counter state mm:83a6e340 idx:0 val:-1
[ 3.496000] BUG: Bad rss-counter state mm:83a6e340 idx:1 val:1
Try backup config
[ 3.688000] Loading modules backported from Linux version wt-2016-10-03-1-g6fcb1a6
[ 3.692000] Backport generated by backports.git backports-20160324-9-g0e38f5c
[ 3.960000] SQUASHFS error: xz decompression failed, data probably corrupt
[ 3.964000] SQUASHFS error: squashfs_read_data failed to read block 0x16ae56
[ 3.996000] SQUASHFS error: xz decompression failed, data probably corrupt
[ 4.004000] SQUASHFS error: squashfs_read_data failed to read block 0x16ae56
insmod: can't insert 'mac80211.ko': Bad address
[ 4.076000] swd: module license 'Proprietary' taints kernel.
[ 4.084000] swd: Unknown symbol rate_control_set_rates (err 0)
[ 4.088000] swd: Unknown symbol ieee80211_rx_hook_register (err 0)
[ 4.096000] swd: Unknown symbol ieee80211_start_tx_ba_session (err 0)
[ 4.100000] swd: Unknown symbol ieee80211_rx_hook_unregister (err 0)
[ 4.108000] swd: Unknown symbol ieee80211_rate_control_unregister (err 0)
[ 4.116000] swd: Unknown symbol ieee80211_rate_control_register (err 0)
[ 4.124000] swd: Unknown symbol __ieee80211_nullfunc_get (err 0)
[ 4.128000] swd: Unknown symbol __ieee80211_tx_skb_tid_band (err 0)
[ 4.136000] swd: Unknown symbol ieee80211_set_locmode (err 0)
[ 4.140000] swd: Unknown symbol _ieee80211_deliver_skb (err 0)
insmod: can't insert 'swd.ko': unknown symbol in[ 4.152000] swdgpl: Unknown symbol _swd_sbi_init (err 0)
module, or unkn[ 4.156000] swdgpl: Unknown symbol _swd_lic_init (err 0)
own parameter
[ 4.164000] swdgpl: Unknown symbol rc80211_priest_exit (err 0)
[ 4.172000] swdgpl: Unknown symbol rc80211_priest_init (err 0)
[ 4.176000] swdgpl: Unknown symbol proc_swd_fini (err 0)
[ 4.184000] swdgpl: Unknown symbol proc_swd_init (err 0)
[ 4.188000] swdgpl: Unknown symbol _swd_sbi_fini (err 0)
[ 4.192000] swdgpl: Unknown symbol _swd_webportal_init (err 0)
[ 4.200000] swdgpl: Unknown symbol g_sbi_tfm (err 0)
[ 4.204000] swdgpl: Unknown symbol g_webp_tfm (err 0)
[ 4.212000] swdgpl: Unknown symbol _swd_nscd_fini (err 0)
[ 4.216000] swdgpl: Unknown symbol g_lic_sha1_tfm (err 0)
[ 4.220000] swdgpl: Unknown symbol _swd_webportal_fini (err 0)
[ 4.228000] swdgpl: Unknown symbol _swd_iptable_init (err 0)
[ 4.232000] swdgpl: Unknown symbol _swd_nscd_init (err 0)
[ 4.240000] swdgpl: Unknown symbol _swd_stc_init (err 0)
[ 4.244000] swdgpl: Unknown symbol swdt_extend (err 0)
[ 4.248000] swdgpl: Unknown symbol _swd_iptable_fini (err 0)
[ 4.256000] swdgpl: Unknown symbol swd_regist_apicb (err 0)
[ 4.260000] swdgpl: Unknown symbol _swd_lic_fini (err 0)
[ 4.268000] swdgpl: Unknown symbol _swd_stc_fini (err 0)
insmod: can't insert 'swdgpl.ko': unknown symbol in module, or unknown parameter
[ 4.504000] ath9k: Unknown symbol ieee80211_start_tx_ba_cb_irqsafe (err 0)
[ 4.512000] ath9k: Unknown symbol ieee80211_tx_status_noskb (err 0)
[ 4.516000] ath9k: Unknown symbol ieee80211_free_hw (err 0)
[ 4.524000] ath9k: Unknown symbol ieee80211_register_hw (err 0)
[ 4.528000] ath9k: Unknown symbol __ieee80211_create_tpt_led_trigger (err 0)
[ 4.536000] ath9k: Unknown symbol ieee80211_sta_eosp (err 0)
[ 4.540000] ath9k: Unknown symbol __ieee80211_get_radio_led_name (err 0)
[ 4.548000] ath9k: Unknown symbol ieee80211_get_buffered_bc (err 0)
[ 4.556000] ath9k: Unknown symbol ieee80211_get_tx_rates (err 0)
[ 4.560000] ath9k: Unknown symbol ieee80211_send_bar (err 0)
[ 4.568000] ath9k: Unknown symbol ieee80211_sta_set_buffered (err 0)
[ 4.572000] ath9k: Unknown symbol priest_tx_drv_cost (err 0)
[ 4.580000] ath9k: Unknown symbol ieee80211_stop_tx_ba_cb_irqsafe (err 0)
[ 4.588000] ath9k: Unknown symbol wiphy_to_ieee80211_hw (err 0)
[ 4.592000] ath9k: Unknown symbol ieee80211_queue_delayed_work (err 0)
[ 4.600000] ath9k: Unknown symbol ieee80211_find_sta_by_ifaddr (err 0)
[ 4.608000] ath9k: Unknown symbol ieee80211_wake_queues (err 0)
[ 4.612000] ath9k: Unknown symbol ieee80211_free_txskb (err 0)
[ 4.620000] ath9k: Unknown symbol ieee80211_alloc_hw_nm (err 0)
[ 4.624000] ath9k: Unknown symbol ieee80211_tx_dequeue (err 0)
[ 4.632000] ath9k: Unknown symbol ieee80211_tx_status (err 0)
[ 4.636000] ath9k: Unknown symbol ieee80211_stop_queues (err 0)
[ 4.644000] ath9k: Unknown symbol ieee80211_iterate_active_interfaces_atomic (err 0)
[ 4.652000] ath9k: Unknown symbol ieee80211_unregister_hw (err 0)
[ 4.656000] ath9k: Unknown symbol ieee80211_beacon_get_tim (err 0)
[ 4.664000] ath9k: Unknown symbol priest_tx_drv_ratio (err 0)
[ 4.668000] ath9k: Unknown symbol ieee80211_radar_detected (err 0)
[ 4.676000] ath9k: Unknown symbol ieee80211_csa_is_complete (err 0)
[ 4.684000] ath9k: Unknown symbol ieee80211_queue_work (err 0)
[ 4.688000] ath9k: Unknown symbol ieee80211_csa_finish (err 0)
[ 4.696000] ath9k: Unknown symbol ieee80211_rx_napi (err 0)
insmod: can't insert 'ath9k.ko': unknown symbol in module, or unknown parameter
[ 4.820000] ath10k_core: Unknown symbol ieee80211_connection_loss (err 0)
[ 4.824000] ath10k_core: Unknown symbol ieee80211_txq_get_depth (err 0)
[ 4.832000] ath10k_core: Unknown symbol ieee80211_free_hw (err 0)
[ 4.840000] ath10k_core: Unknown symbol ieee80211_iterate_stations_atomic (err 0)
[ 4.848000] ath10k_core: Unknown symbol ieee80211_beacon_loss (err 0)
[ 4.852000] ath10k_core: Unknown symbol ieee80211_register_hw (err 0)
[ 4.860000] ath10k_core: Unknown symbol __ieee80211_create_tpt_led_trigger (err 0)
[ 4.868000] ath10k_core: Unknown symbol ieee80211_restart_hw (err 0)
[ 4.876000] ath10k_core: Unknown symbol ieee80211_wake_queue (err 0)
[ 4.880000] ath10k_core: Unknown symbol ieee80211_find_sta (err 0)
[ 4.888000] ath10k_core: Unknown symbol ieee80211_stop_rx_ba_session_offl (err 0)
[ 4.896000] ath10k_core: Unknown symbol ieee80211_tx_status_irqsafe (err 0)
[ 4.904000] ath10k_core: Unknown symbol ieee80211_iter_chan_contexts_atomic (err 0)
[ 4.912000] ath10k_core: Unknown symbol wiphy_to_ieee80211_hw (err 0)
[ 4.916000] ath10k_core: Unknown symbol ieee80211_queue_delayed_work (err 0)
[ 4.924000] ath10k_core: Unknown symbol ieee80211_proberesp_get (err 0)
[ 4.932000] ath10k_core: Unknown symbol ieee80211_find_sta_by_ifaddr (err 0)
[ 4.940000] ath10k_core: Unknown symbol ieee80211_remain_on_channel_expired (err 0)
[ 4.948000] ath10k_core: Unknown symbol ieee80211_wake_queues (err 0)
[ 4.952000] ath10k_core: Unknown symbol ieee80211_report_low_ack (err 0)
[ 4.960000] ath10k_core: Unknown symbol ieee80211_beacon_get_template (err 0)
[ 4.968000] ath10k_core: Unknown symbol ieee80211_free_txskb (err 0)
[ 4.972000] ath10k_core: Unknown symbol ieee80211_alloc_hw_nm (err 0)
[ 4.980000] ath10k_core: Unknown symbol ieee80211_tx_dequeue (err 0)
[ 4.988000] ath10k_core: Unknown symbol ieee80211_tx_status (err 0)
[ 4.992000] ath10k_core: Unknown symbol ieee80211_stop_queue (err 0)
[ 5.000000] ath10k_core: Unknown symbol ieee80211_ready_on_channel (err 0)
[ 5.008000] ath10k_core: Unknown symbol ieee80211_stop_queues (err 0)
[ 5.012000] ath10k_core: Unknown symbol ieee80211_scan_completed (err 0)
[ 5.020000] ath10k_core: Unknown symbol ieee80211_iterate_active_interfaces_atomic (err 0)
[ 5.028000] ath10k_core: Unknown symbol ieee80211_unregister_hw (err 0)
[ 5.036000] ath10k_core: Unknown symbol ieee80211_csa_update_counter (err 0)
[ 5.044000] ath10k_core: Unknown symbol ieee80211_beacon_get_tim (err 0)
[ 5.052000] ath10k_core: Unknown symbol ieee80211_start_rx_ba_session_offl (err 0)
[ 5.060000] ath10k_core: Unknown symbol ieee80211_radar_detected (err 0)
[ 5.064000] ath10k_core: Unknown symbol ieee80211_csa_is_complete (err 0)
[ 5.072000] ath10k_core: Unknown symbol ieee80211_queue_work (err 0)
[ 5.080000] ath10k_core: Unknown symbol ieee80211_csa_finish (err 0)
[ 5.084000] ath10k_core: Unknown symbol ieee80211_rx_napi (err 0)
insmod: can't insert 'ath10k_core.ko': unknown symbol in module,[ 5.096000] ath10k_pci: Unknown symbol ath10k_warn (err 0)
or unknown para[ 5.104000] ath10k_pci: Unknown symbol ath10k_err (err 0)
meter
[ 5.112000] ath10k_pci: Unknown symbol ath10k_print_driver_info (err 0)
[ 5.120000] ath10k_pci: Unknown symbol ath10k_htt_hif_tx_complete (err 0)
[ 5.124000] ath10k_pci: Unknown symbol ath10k_htc_tx_completion_handler (err 0)
[ 5.132000] ath10k_pci: Unknown symbol ath10k_core_create (err 0)
[ 5.140000] ath10k_pci: Unknown symbol ath10k_htt_rx_pktlog_completion_handler (err 0)
[ 5.148000] ath10k_pci: Unknown symbol ath10k_core_destroy (err 0)
[ 5.152000] ath10k_pci: Unknown symbol ath10k_htc_rx_completion_handler (err 0)
[ 5.160000] ath10k_pci: Unknown symbol ath10k_core_register (err 0)
[ 5.168000] ath10k_pci: Unknown symbol ath10k_info (err 0)
[ 5.172000] ath10k_pci: Unknown symbol ath10k_htt_t2h_msg_handler (err 0)
[ 5.180000] ath10k_pci: Unknown symbol ath10k_core_unregister (err 0)
[ 5.188000] ath10k_pci: Unknown symbol ath10k_htt_txrx_compl_task (err 0)
insmod: can't insert 'ath10k_pci.ko': unknown symbol in module, or unknown parameter
cat: can't open '/proc/swd/lic/wlan_super_density': No such file[ 5.320000] random: svld urandom read with 21 bits of entropy available
or directory
Load setting file error!!
Load setting file error!!
/etc/swrt/service/S32wlan/run: line 345: can't create /sys/module/mac80211/parameters/ieee80211_enhance_mask: nonexistent directory
ifconfig: SIOCSIFADDR: No such device
brctl: iface eth1: No such device
/etc/swrt/service/S34netlan/run: line 115: can't create /proc/swd/nscd/local_ip: nonexistent directory
/etc/swrt/service/S34netlan/run: line 115: can't create /proc/swd/webportal/gateway_ip: nonexistent directory
[ 6.500000] eth0: link up (1000Mbps/Full duplex)
/etc/swrt/service/S36netwan/run: line 68: can't create /proc/swd/nscd/dns_ips: nonexistent directory
udhcpc (v1.22.1) started
Setting IP address 0.0.0.0 on eth0
Sending discover...
/etc/swrt/service/S38netfwtc/run: line 6: can't create /proc/swd/stc/ifs_set: nonexistent directory
/etc/swrt/service/S38netfwtc/run: line 69: can't create /proc/swd/stc/ifs_set: nonexistent directory
/etc/swrt/service/S38netfwtc/run: line 72: can't create /proc/swd/stc/cfg_smart: nonexistent directory
/etc/swrt/service/S38netfwtc/run: line 1: can't create /proc/swd/stc/ifs_set: nonexistent directory
/etc/swrt/service/S38netfwtc/run: line 1: can't create /proc/swd/stc/ifs_set: nonexistent directory
/etc/swrt/service/S42netuser/run: line 2: can't create /proc/swd/stc/users_set: nonexistent directory
no schk found; none killed
/etc/swrt/service/S78webportal/run: line 8: can't create /proc/swd/webportal/interfaces: nonexistent directory
/etc/swrt/service/S78webportal/run: line 11: can't create /proc/swd/webportal/enable: nonexistent directory
no httpd found; none killed
Jan 1 08:00:04 crond[690]: crond: crond (busybox 1.22.1) started, log level 8. random: 3477065300.

Please press Enter to activate this console. Sending discover...
Sending discover...
[ 31.032000] random: nonblocking pool is initialized

[x140_g]

用这个bootargs="console=ttyS0,115200 mtdparts=spi0.0:112k(uboot),16k(SBI),128k(custom),64k(DTB),64k(CAL),64k(elog),128k(config),128k(config2),11520k(firmware),4160k(udata)" 配置信息的时候 第一次写入uboot 写入系统 然后第一次启动之后可以进去设置 wan口插上网上可以上网了，然后重启之后又不行了 ，清除配置都不好使，然后我又重新写入uboot 写系统 启动 又是可以用一次。 我是把art直接添加到uboot文件的末尾刷进去 的 会影响么？
2.4G 0x1e000

2.4G mac 0x1e500

5G 0x1f000

5G mac 0x1fa00

正常启动ttl

[ 0.460000] console [ttyS0] enabled
[ 0.468000] bootconsole [early0] disabled
[ 0.468000] bootconsole [early0] disabled
[ 0.492000] m25p80 spi0.0: found s25fl064k, expected m25p80
[ 0.496000] m25p80 spi0.0: s25fl064k (8192 Kbytes)
[ 0.500000] 9 cmdlinepart partitions found on MTD device spi0.0
[ 0.508000] Creating 9 MTD partitions on "spi0.0":
[ 0.512000] 0x000000000000-0x00000001c000 : "uboot"
[ 0.520000] 0x00000001c000-0x000000020000 : "SBI"
[ 0.524000] 0x000000020000-0x0000007a0000 : "firmware"
[ 0.532000] Split rootfs Part: off:0x15d2e8 len:0x642d18
[ 0.536000] 0x00000015d2e8-0x0000007a0000 : "rootfs"
[ 0.540000] 1 squashfs-split partitions found on MTD device rootfs
[ 0.548000] 0x000000368000-0x0000007a0000 : "rootfs_data"
[ 0.556000] mtd: device 3 (rootfs) set to be root filesystem
[ 0.560000] 0x0000007a0000-0x0000007b0000 : "elog"
[ 0.568000] mtdoops: Attached to MTD device 5
[ 0.572000] 0x0000007b0000-0x0000007c0000 : "config"
[ 0.576000] 0x0000007c0000-0x0000007d0000 : "config2"
[ 0.584000] 0x0000007d0000-0x0000007e0000 : "custom"
[ 0.588000] 0x0000007e0000-0x0000007f0000 : "DTB"
[ 0.596000] 0x0000007f0000-0x000000800000 : "CAL"
[ 0.612000] switch0: Atheros AR8337 rev. 2 switch registered on ag71xx-mdio.0
[ 0.692000] libphy: ag71xx_mdio: probed. phys=0x01ff001f
[ 1.268000] eth0: Atheros AG71xx at 0xb9000000, irq 4, mode:SGMII
[ 1.272000] PPP generic driver version 2.4.2
[ 1.280000] PPP MPPE Compression module registered
[ 1.284000] NET: Registered protocol family 24
[ 1.288000] PPTP driver version 0.8.5
[ 1.292000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.300000] ehci-pci: EHCI PCI platform driver
[ 1.304000] ehci-platform: EHCI generic platform driver
[ 1.308000] ehci-platform ehci-platform.0: EHCI Host Controller
[ 1.316000] ehci-platform ehci-platform.0: new USB bus registered, assigned bus number 1
[ 1.324000] ehci-platform ehci-platform.0: irq 48, io mem 0x1b000000
[ 1.344000] ehci-platform ehci-platform.0: USB 2.0 started, EHCI 1.00
[ 1.348000] hub 1-0:1.0: USB hub found
[ 1.352000] hub 1-0:1.0: 1 port detected
[ 1.356000] ehci-platform ehci-platform.1: EHCI Host Controller
[ 1.364000] ehci-platform ehci-platform.1: new USB bus registered, assigned bus number 2
[ 1.376000] ehci-platform ehci-platform.1: irq 49, io mem 0x1b400000
[ 1.392000] ehci-platform ehci-platform.1: USB 2.0 started, EHCI 1.00
[ 1.396000] hub 2-0:1.0: USB hub found
[ 1.400000] hub 2-0:1.0: 1 port detected
[ 1.404000] usbcore: registered new interface driver usblp
[ 1.412000] usbcore: registered new interface driver usb-storage
[ 1.420000] input: gpio-keys-polled as /devices/platform/gpio-keys-polled/input/input0
[ 1.428000] Netfilter messages via NETLINK v0.30.
[ 1.432000] nf_conntrack version 0.5.0 (944 buckets, 3776 max)
[ 1.440000] xt_time: kernel timezone is -0000
[ 1.444000] gre: GRE over IPv4 demultiplexor driver
[ 1.448000] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 1.456000] TCP: cubic registered
[ 1.460000] NET: Registered protocol family 10
[ 1.464000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 1.472000] NET: Registered protocol family 17
[ 1.476000] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
[ 1.488000] Ebtables v2.0 registered
[ 1.492000] 8021q: 802.1Q VLAN Support v1.8
[ 1.504000] VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
[ 1.512000] Freeing unused kernel memory: 208K (803fc000 - 80430000)
init started: BusyBox v1.22.1 (2017-06-21 14:37:16 CST)
starting pid 350, tty '': 'sh /etc/init.d/rcS S start'
mount: mounting usbfs on /proc/bus/usb failed: No such file or directory
mount: mounting nodev on /sys/kernel/debug failed: No such file or directory
Fri Jan 1 00:00:00 UTC 2010
Try backup config
[ 3.592000] Loading modules backported from Linux version wt-2016-10-03-1-g6fcb1a6
[ 3.600000] Backport generated by backports.git backports-20160324-9-g0e38f5c
[ 4.028000] swd: module license 'Proprietary' taints kernel.
[ 4.036000] Disabling lock debugging due to kernel taint
[ 4.044000] SuperWRT Network Engine installed!
[ 4.312000] ieee80211 phy0: Atheros AR9561 Rev:0 mem=0xb8100000, irq=47
[ 4.488000] PCI: Enabling device 0000:00:00.0 (0000 -> 0002)
[ 4.496000] ath10k_pci 0000:00:00.0: pci irq legacy oper_irq_mode 1 irq_mode 0 reset_mode 0
[ 4.696000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/pre-cal-pci-0000:00:00.0.bin failed with error -2
[ 4.704000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/cal-pci-0000:00:00.0.bin failed with error -2
[ 4.940000] ath10k_pci 0000:00:00.0: qca9887 hw1.0 target 0x4100016d chip_id 0x004000ff sub 0000:0000
[ 4.948000] ath10k_pci 0000:00:00.0: kconfig debug 0 debugfs 0 tracing 0 dfs 1 testmode 0
[ 4.960000] ath10k_pci 0000:00:00.0: firmware ver 10.2.4-1.0-00013 api 5 features no-p2p,ignore-otp,skip-clock-init,mfp crc32 14a57ac6
[ 5.012000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/QCA9887/hw1.0/board-2.bin failed with error -2
[ 5.024000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/QCA9887/hw1.0/board.bin failed with error -2
[ 5.036000] ath10k_pci 0000:00:00.0: board_file api 1 bmi_id N/A crc32 00000000
[ 5.128000] ath10k_pci 0000:00:00.0: failed to get board id form OTP: -122
[ 6.120000] ath10k_pci 0000:00:00.0: htt-ver 2.1 wmi-op 5 htt-op 2 cal file max-sta 128 raw 0 hwcrypto 1
[ 9.200000] ath10k_pci 0000:00:00.0: failed to receive initialized event from target: 00000000
[ 9.208000] ath10k_pci 0000:00:00.0: failed to wait for target init: -145
[ 9.220000] sched: RT throttling activated
[ 9.360000] random: svld urandom read with 36 bits of entropy available
[ 11.140000] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready
[ 11.148000] device wlan0 entered promiscuous mode
[ 17.216000] IPv6: ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready
[ 17.560000] ath10k_pci 0000:00:00.0: failed to get board id form OTP: -122
[ 18.584000] IPv6: ADDRCONF(NETDEV_UP): wlan10: link is not ready
[ 18.592000] device wlan10 entered promiscuous mode
[ 25.368000] IPv6: ADDRCONF(NETDEV_CHANGE): wlan10: link becomes ready
[ 25.688000] eth0: link up (1000Mbps/Full duplex)
[ 25.700000] device eth0.1 entered promiscuous mode
[ 25.704000] device eth0 entered promiscuous mode
[ 25.716000] lan: port 3(eth0.1) entered forwarding state
[ 25.720000] lan: port 3(eth0.1) entered forwarding state
[ 25.724000] lan: port 2(wlan10) entered forwarding state
[ 25.732000] lan: port 2(wlan10) entered forwarding state
[ 25.736000] lan: port 1(wlan0) entered forwarding state
[ 25.744000] lan: port 1(wlan0) entered forwarding state
udhcpc (v1.22.1) started
Setting IP address 0.0.0.0 on eth0.2
Sending discover...
no schk found; none killed
[ 26.268000] CPU 0 Unable to handle kernel paging request at virtual address 030171a4, epc == 800a42d0, ra == 8010f668
[ 26.280000] Oops[#1]:
[ 26.280000] CPU: 0 PID: 815 Comm: run.sh Tainted: P 3.18.47 #1
[ 26.280000] task: 83b2a2c8 ti: 82930000 task.ti: 82930000
[ 26.280000] $ 0 : 00000000 00000064 83b2a2c8 77b8dae8
[ 26.280000] $ 4 : 030171a0 0000000a 00000000 00000000
[ 26.280000] $ 8 : 00000000 84080018 800f1dcc 0000000a
[ 26.280000] $12 : 7fbcd4b0 00bba784 0047e654 00bba76c
[ 26.280000] $16 : 0000000a 03017180 030171a0 00bb9008
[ 26.280000] $20 : 00bc2540 00000000 00000000 00480000
[ 26.280000] $24 : 00bba76c 77b8dac8
[ 26.280000] $28 : 82930000 82931ec0 7fbcefa7 8010f668
[ 26.280000] Hi : 00000004
[ 26.280000] Lo : 00000000
[ 26.280000] epc : 800a42d0 0x800a42d0
[ 26.280000] Tainted: P
[ 26.280000] ra : 8010f668 0x8010f668
[ 26.280000] Status: 1100dc03 KERNEL EXL IE
[ 26.280000] Cause : 00800008
[ 26.280000] BadVA : 030171a4
[ 26.280000] PrId : 00019750 (MIPS 74Kc)
[ 26.280000] Modules linked in: ath10k_pci[0x831d8000] ath10k_core[0x83280000] ath9k[0x83150000] ath9k_common[0x83bb8000] ath9k_hw[0x83100000] ath[0x83b78000] swdgpl[0x83014000] swd(P)[0x83b60000] mac80211[0x83080000] cfg80211[0x83bc0000] compat[0x83b4c000]
[ 26.280000] Process run.sh (pid: 815, threadinfo=82930000, task=83b2a2c8, tls=77c10440)
[ 26.280000] Stack : 838289f0 803e0000 80370000 80371aac 0000000a 03017180 030171a0 00bb9008
00bc2540 8010f668 82930000 82931f10 00000000 80060888 1100dc03 0047e6b8
00bbdff4 00480000 00bb9008 800f1de4 00bc2540 00000000 00000000 00480000
7fbcefa7 80062b5c 00000000 00000000 00000000 00000000 00bba784 0047e654
00bba76c 00bba76c 00000000 00000064 00000fa6 00000000 0000000a 00bbdff4
...
[ 26.280000] Call Trace:[<8010f668>] 0x8010f668
[ 26.280000] [<80060888>] 0x80060888
[ 26.280000] [<800f1de4>] 0x800f1de4
[ 26.280000] [<80062b5c>] 0x80062b5c
[ 26.280000]
[ 26.280000]
Code: afb3001c afb20018 afb10014 <8c830004> 3c02dead 24424ead 10620004 00808021 3c058037
[ 26.468000] ---[ end trace 5ff38a536f6ec5b6 ]---
Performing a DHC[ 26.476000] CPU 0 Unable to handle kernel paging request at virtual address 03017180, epc == 8010f240, ra == 8008359c
P renew
[ 26.488000] Oops[#2]:
[ 26.488000] CPU: 0 PID: 815 Comm: run.sh Tainted: P D 3.18.47 #1
[ 26.488000] task: 83b2a2c8 ti: 82930000 task.ti: 82930000
[ 26.488000] $ 0 : 00000000 00000000 00000001 83b2a2c8
[ 26.488000] $ 4 : 03017180 00000001 83a82b60 000005fa
[ 26.488000] $ 8 : 00000001 000005f9 83a824e0 00000001
[ 26.488000] $12 : ffffff80 ffffffff ffffffff 0000000a
[ 26.488000] $16 : 03017180 83a82b60 83b2a738 00000001
[ 26.488000] $20 : 83a82ba4 83a82b60 00000000 83a82ba4
[ 26.488000] $24 : 00000000 8009fbc8
[ 26.488000] $28 : 82930000 82931c98 00030002 8008359c
[ 26.488000] Hi : 00000006
[ 26.488000] Lo : 2a17b300
[ 26.488000] epc : 8010f240 0x8010f240
[ 26.488000] Tainted: P D
[ 26.488000] ra : 8008359c 0x8008359c
[ 26.488000] Status: 1100dc03 KERNEL EXL IE
[ 26.488000] Cause : 00800008
[ 26.488000] BadVA : 03017180
[ 26.488000] PrId : 00019750 (MIPS 74Kc)
[ 26.488000] Modules linked in: ath10k_pci[0x831d8000] ath10k_core[0x83280000] ath9k[0x83150000] ath9k_common[0x83bb8000] ath9k_hw[0x83100000] ath[0x83b78000] swdgpl[0x83014000] swd(P)[0x83b60000] mac80211[0x83080000] cfg80211[0x83bc0000] compat[0x83b4c000]
[ 26.488000] Process run.sh (pid: 815, threadinfo=82930000, task=83b2a2c8, tls=77c10440)
[ 26.488000] Stack : 83a82ba4 8010f3d0 83b2a738 83b2a2c8 83b2a2c8 83a82b60 83b2a738 00000001
83a82ba4 8008359c 00000ff2 803e2cdc 80440000 80442918 803e2cdc 800a87a4
00030002 8006a918 8036c908 82931cfc 82931e08 8036afc0 0000000b 803e0000
83afac60 83a82b60 00000000 83a82ba4 00030002 800733f8 00030002 8036afc0
00000001 ffffffff 00000002 0000000b 8036baf8 030171a4 83b2a2c8 82931e08
...
[ 26.488000] Call Trace:[<8010f3d0>] 0x8010f3d0
[ 26.488000] [<8008359c>] 0x8008359c
[ 26.488000] [<800a87a4>] 0x800a87a4
[ 26.488000] [<8006a918>] 0x8006a918
[ 26.488000] [<800733f8>] 0x800733f8
[ 26.488000] [<8007794c>] 0x8007794c
[ 26.488000] [<800a42d0>] 0x800a42d0
[ 26.488000] [<8010f668>] 0x8010f668
[ 26.488000] [<8006a8c8>] 0x8006a8c8
[ 26.488000] [<800e3790>] 0x800e3790
[ 26.488000] [<80060820>] 0x80060820
[ 26.488000] [<8006a880>] 0x8006a880
[ 26.488000] [<800f1dcc>] 0x800f1dcc
[ 26.488000] [<8010f668>] 0x8010f668
[ 26.488000] [<800a42d0>] 0x800a42d0
[ 26.488000] [<8010f668>] 0x8010f668
[ 26.488000] [<80060888>] 0x80060888
[ 26.488000] [<800f1de4>] 0x800f1de4
[ 26.488000] [<80062b5c>] 0x80062b5c
[ 26.488000]
[ 26.488000]
Code: afb20018 afb10014 00808021 <c2030000> 2462ffff e2020000 1040fffc 00000000 24020001
[ 26.728000] ---[ end trace 5ff38a536f6ec5b7 ]---
[ 26.736000] Fixing recursive fault but reboot is needed!
[ 26.752000] mtdoops: ready 1, 2 (no erase)
[ 27.764000] random: nonblocking pool is initialized
Sending discover...
Sending discover...


第二次不正常启动的

[ 0.464000] console [ttyS0] enabled
[ 0.472000] bootconsole [early0] disabled
[ 0.472000] bootconsole [early0] disabled
[ 0.492000] m25p80 spi0.0: found s25fl064k, expected m25p80
[ 0.496000] m25p80 spi0.0: s25fl064k (8192 Kbytes)
[ 0.500000] 9 cmdlinepart partitions found on MTD device spi0.0
[ 0.508000] Creating 9 MTD partitions on "spi0.0":
[ 0.512000] 0x000000000000-0x00000001c000 : "uboot"
[ 0.520000] 0x00000001c000-0x000000020000 : "SBI"
[ 0.524000] 0x000000020000-0x0000007a0000 : "firmware"
[ 0.532000] Split rootfs Part: off:0x15d2e8 len:0x642d18
[ 0.536000] 0x00000015d2e8-0x0000007a0000 : "rootfs"
[ 0.540000] 1 squashfs-split partitions found on MTD device rootfs
[ 0.548000] 0x000000368000-0x0000007a0000 : "rootfs_data"
[ 0.556000] mtd: device 3 (rootfs) set to be root filesystem
[ 0.560000] 0x0000007a0000-0x0000007b0000 : "elog"
[ 0.568000] mtdoops: Attached to MTD device 5
[ 0.572000] 0x0000007b0000-0x0000007c0000 : "config"
[ 0.576000] 0x0000007c0000-0x0000007d0000 : "config2"
[ 0.584000] 0x0000007d0000-0x0000007e0000 : "custom"
[ 0.588000] 0x0000007e0000-0x0000007f0000 : "DTB"
[ 0.596000] 0x0000007f0000-0x000000800000 : "CAL"
[ 0.612000] switch0: Atheros AR8337 rev. 2 switch registered on ag71xx-mdio.0
[ 0.692000] libphy: ag71xx_mdio: probed. phys=0x01ff001f
[ 1.268000] eth0: Atheros AG71xx at 0xb9000000, irq 4, mode:SGMII
[ 1.272000] PPP generic driver version 2.4.2
[ 1.280000] PPP MPPE Compression module registered
[ 1.284000] NET: Registered protocol family 24
[ 1.288000] PPTP driver version 0.8.5
[ 1.292000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.300000] ehci-pci: EHCI PCI platform driver
[ 1.304000] ehci-platform: EHCI generic platform driver
[ 1.308000] ehci-platform ehci-platform.0: EHCI Host Controller
[ 1.316000] ehci-platform ehci-platform.0: new USB bus registered, assigned bus number 1
[ 1.324000] ehci-platform ehci-platform.0: irq 48, io mem 0x1b000000
[ 1.344000] ehci-platform ehci-platform.0: USB 2.0 started, EHCI 1.00
[ 1.348000] hub 1-0:1.0: USB hub found
[ 1.352000] hub 1-0:1.0: 1 port detected
[ 1.356000] ehci-platform ehci-platform.1: EHCI Host Controller
[ 1.364000] ehci-platform ehci-platform.1: new USB bus registered, assigned bus number 2
[ 1.376000] ehci-platform ehci-platform.1: irq 49, io mem 0x1b400000
[ 1.392000] ehci-platform ehci-platform.1: USB 2.0 started, EHCI 1.00
[ 1.396000] hub 2-0:1.0: USB hub found
[ 1.400000] hub 2-0:1.0: 1 port detected
[ 1.404000] usbcore: registered new interface driver usblp
[ 1.412000] usbcore: registered new interface driver usb-storage
[ 1.420000] input: gpio-keys-polled as /devices/platform/gpio-keys-polled/input/input0
[ 1.428000] Netfilter messages via NETLINK v0.30.
[ 1.432000] nf_conntrack version 0.5.0 (944 buckets, 3776 max)
[ 1.440000] xt_time: kernel timezone is -0000
[ 1.444000] gre: GRE over IPv4 demultiplexor driver
[ 1.448000] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 1.456000] TCP: cubic registered
[ 1.460000] NET: Registered protocol family 10
[ 1.464000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 1.472000] NET: Registered protocol family 17
[ 1.476000] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
[ 1.488000] Ebtables v2.0 registered
[ 1.492000] 8021q: 802.1Q VLAN Support v1.8
[ 1.504000] VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
[ 1.512000] Freeing unused kernel memory: 208K (803fc000 - 80430000)
init started: BusyBox v1.22.1 (2017-06-21 14:37:16 CST)
starting pid 350, tty '': 'sh /etc/init.d/rcS S start'
mount: mounting usbfs on /proc/bus/usb failed: No such file or directory
mount: mounting nodev on /sys/kernel/debug failed: No such file or directory
Fri Jan 1 00:00:00 UTC 2010
[ 3.536000] random: svld urandom read with 13 bits of entropy available
US
[ 3.704000] Loading modules backported from Linux version wt-2016-10-03-1-g6fcb1a6
[ 3.712000] Backport generated by backports.git backports-20160324-9-g0e38f5c
[ 4.032000] SQUASHFS error: xz decompression failed, data probably corrupt
[ 4.040000] SQUASHFS error: squashfs_read_data failed to read block 0x177e26
[ 4.068000] SQUASHFS error: xz decompression failed, data probably corrupt
[ 4.076000] SQUASHFS error: squashfs_read_data failed to read block 0x177e26
insmod: can't insert 'mac80211.ko': Bad address
[ 4.148000] swd: module license 'Proprietary' taints kernel.
[ 4.156000] Disabling lock debugging due to kernel taint
[ 4.160000] swd: Unknown symbol rate_control_set_rates (err 0)
[ 4.168000] swd: Unknown symbol ieee80211_rx_hook_register (err 0)
[ 4.176000] swd: Unknown symbol ieee80211_start_tx_ba_session (err 0)
[ 4.180000] swd: Unknown symbol ieee80211_rx_hook_unregister (err 0)
[ 4.188000] swd: Unknown symbol ieee80211_rate_control_unregister (err 0)
[ 4.196000] swd: Unknown symbol ieee80211_rate_control_register (err 0)
[ 4.200000] swd: Unknown symbol __ieee80211_nullfunc_get (err 0)
[ 4.208000] swd: Unknown symbol __ieee80211_tx_skb_tid_band (err 0)
[ 4.216000] swd: Unknown symbol ieee80211_set_locmode (err 0)
[ 4.220000] swd: Unknown symbol _ieee80211_deliver_skb (err 0)
insmod: can't insert 'swd.ko': unknown symbol in module, or unkn[ 4.232000] swdgpl: Unknown symbol _swd_sbi_init (err 0)
own parameter
[ 4.236000] swdgpl: Unknown symbol _swd_lic_init (err 0)
[ 4.244000] swdgpl: Unknown symbol rc80211_priest_exit (err 0)
[ 4.252000] swdgpl: Unknown symbol rc80211_priest_init (err 0)
[ 4.256000] swdgpl: Unknown symbol proc_swd_fini (err 0)
[ 4.264000] swdgpl: Unknown symbol proc_swd_init (err 0)
[ 4.268000] swdgpl: Unknown symbol _swd_sbi_fini (err 0)
[ 4.272000] swdgpl: Unknown symbol _swd_webportal_init (err 0)
[ 4.280000] swdgpl: Unknown symbol g_sbi_tfm (err 0)
[ 4.284000] swdgpl: Unknown symbol g_webp_tfm (err 0)
[ 4.288000] swdgpl: Unknown symbol _swd_nscd_fini (err 0)
[ 4.296000] swdgpl: Unknown symbol g_lic_sha1_tfm (err 0)
[ 4.300000] swdgpl: Unknown symbol _swd_webportal_fini (err 0)
[ 4.308000] swdgpl: Unknown symbol _swd_iptable_init (err 0)
[ 4.312000] swdgpl: Unknown symbol _swd_nscd_init (err 0)
[ 4.320000] swdgpl: Unknown symbol _swd_stc_init (err 0)
[ 4.324000] swdgpl: Unknown symbol swdt_extend (err 0)
[ 4.328000] swdgpl: Unknown symbol _swd_iptable_fini (err 0)
[ 4.336000] swdgpl: Unknown symbol swd_regist_apicb (err 0)
[ 4.340000] swdgpl: Unknown symbol _swd_lic_fini (err 0)
[ 4.348000] swdgpl: Unknown symbol _swd_stc_fini (err 0)
insmod: can't insert 'swdgpl.ko': unknown symbol in module, or unknown parameter
[ 4.584000] ath9k: Unknown symbol ieee80211_start_tx_ba_cb_irqsafe (err 0)
[ 4.592000] ath9k: Unknown symbol ieee80211_tx_status_noskb (err 0)
[ 4.596000] ath9k: Unknown symbol ieee80211_free_hw (err 0)
[ 4.604000] ath9k: Unknown symbol ieee80211_register_hw (err 0)
[ 4.608000] ath9k: Unknown symbol __ieee80211_create_tpt_led_trigger (err 0)
[ 4.616000] ath9k: Unknown symbol ieee80211_sta_eosp (err 0)
[ 4.624000] ath9k: Unknown symbol __ieee80211_get_radio_led_name (err 0)
[ 4.628000] ath9k: Unknown symbol ieee80211_get_buffered_bc (err 0)
[ 4.636000] ath9k: Unknown symbol ieee80211_get_tx_rates (err 0)
[ 4.640000] ath9k: Unknown symbol ieee80211_send_bar (err 0)
[ 4.648000] ath9k: Unknown symbol ieee80211_sta_set_buffered (err 0)
[ 4.656000] ath9k: Unknown symbol priest_tx_drv_cost (err 0)
[ 4.660000] ath9k: Unknown symbol ieee80211_stop_tx_ba_cb_irqsafe (err 0)
[ 4.668000] ath9k: Unknown symbol wiphy_to_ieee80211_hw (err 0)
[ 4.672000] ath9k: Unknown symbol ieee80211_queue_delayed_work (err 0)
[ 4.680000] ath9k: Unknown symbol ieee80211_find_sta_by_ifaddr (err 0)
[ 4.688000] ath9k: Unknown symbol ieee80211_wake_queues (err 0)
[ 4.692000] ath9k: Unknown symbol ieee80211_free_txskb (err 0)
[ 4.700000] ath9k: Unknown symbol ieee80211_alloc_hw_nm (err 0)
[ 4.704000] ath9k: Unknown symbol ieee80211_tx_dequeue (err 0)
[ 4.712000] ath9k: Unknown symbol ieee80211_tx_status (err 0)
[ 4.716000] ath9k: Unknown symbol ieee80211_stop_queues (err 0)
[ 4.724000] ath9k: Unknown symbol ieee80211_iterate_active_interfaces_atomic (err 0)
[ 4.732000] ath9k: Unknown symbol ieee80211_unregister_hw (err 0)
[ 4.736000] ath9k: Unknown symbol ieee80211_beacon_get_tim (err 0)
[ 4.744000] ath9k: Unknown symbol priest_tx_drv_ratio (err 0)
[ 4.752000] ath9k: Unknown symbol ieee80211_radar_detected (err 0)
[ 4.756000] ath9k: Unknown symbol ieee80211_csa_is_complete (err 0)
[ 4.764000] ath9k: Unknown symbol ieee80211_queue_work (err 0)
[ 4.768000] ath9k: Unknown symbol ieee80211_csa_finish (err 0)
[ 4.776000] ath9k: Unknown symbol ieee80211_rx_napi (err 0)
insmod: can't insert 'ath9k.ko': unknown symbol in module, or unknown parameter
[ 4.900000] ath10k_core: Unknown symbol ieee80211_connection_loss (err 0)
[ 4.908000] ath10k_core: Unknown symbol ieee80211_txq_get_depth (err 0)
[ 4.912000] ath10k_core: Unknown symbol ieee80211_free_hw (err 0)
[ 4.920000] ath10k_core: Unknown symbol ieee80211_iterate_stations_atomic (err 0)
[ 4.928000] ath10k_core: Unknown symbol ieee80211_beacon_loss (err 0)
[ 4.936000] ath10k_core: Unknown symbol ieee80211_register_hw (err 0)
[ 4.940000] ath10k_core: Unknown symbol __ieee80211_create_tpt_led_trigger (err 0)
[ 4.948000] ath10k_core: Unknown symbol ieee80211_restart_hw (err 0)
[ 4.956000] ath10k_core: Unknown symbol ieee80211_wake_queue (err 0)
[ 4.960000] ath10k_core: Unknown symbol ieee80211_find_sta (err 0)
[ 4.968000] ath10k_core: Unknown symbol ieee80211_stop_rx_ba_session_offl (err 0)
[ 4.976000] ath10k_core: Unknown symbol ieee80211_tx_status_irqsafe (err 0)
[ 4.984000] ath10k_core: Unknown symbol ieee80211_iter_chan_contexts_atomic (err 0)
[ 4.992000] ath10k_core: Unknown symbol wiphy_to_ieee80211_hw (err 0)
[ 4.996000] ath10k_core: Unknown symbol ieee80211_queue_delayed_work (err 0)
[ 5.004000] ath10k_core: Unknown symbol ieee80211_proberesp_get (err 0)
[ 5.012000] ath10k_core: Unknown symbol ieee80211_find_sta_by_ifaddr (err 0)
[ 5.020000] ath10k_core: Unknown symbol ieee80211_remain_on_channel_expired (err 0)
[ 5.028000] ath10k_core: Unknown symbol ieee80211_wake_queues (err 0)
[ 5.032000] ath10k_core: Unknown symbol ieee80211_report_low_ack (err 0)
[ 5.040000] ath10k_core: Unknown symbol ieee80211_beacon_get_template (err 0)
[ 5.048000] ath10k_core: Unknown symbol ieee80211_free_txskb (err 0)
[ 5.056000] ath10k_core: Unknown symbol ieee80211_alloc_hw_nm (err 0)
[ 5.060000] ath10k_core: Unknown symbol ieee80211_tx_dequeue (err 0)
[ 5.068000] ath10k_core: Unknown symbol ieee80211_tx_status (err 0)
[ 5.076000] ath10k_core: Unknown symbol ieee80211_stop_queue (err 0)
[ 5.080000] ath10k_core: Unknown symbol ieee80211_ready_on_channel (err 0)
[ 5.088000] ath10k_core: Unknown symbol ieee80211_stop_queues (err 0)
[ 5.096000] ath10k_core: Unknown symbol ieee80211_scan_completed (err 0)
[ 5.100000] ath10k_core: Unknown symbol ieee80211_iterate_active_interfaces_atomic (err 0)
[ 5.112000] ath10k_core: Unknown symbol ieee80211_unregister_hw (err 0)
[ 5.116000] ath10k_core: Unknown symbol ieee80211_csa_update_counter (err 0)
[ 5.124000] ath10k_core: Unknown symbol ieee80211_beacon_get_tim (err 0)
[ 5.132000] ath10k_core: Unknown symbol ieee80211_start_rx_ba_session_offl (err 0)
[ 5.140000] ath10k_core: Unknown symbol ieee80211_radar_detected (err 0)
[ 5.148000] ath10k_core: Unknown symbol ieee80211_csa_is_complete (err 0)
[ 5.152000] ath10k_core: Unknown symbol ieee80211_queue_work (err 0)
[ 5.160000] ath10k_core: Unknown symbol ieee80211_csa_finish (err 0)
[ 5.168000] ath10k_core: Unknown symbol ieee80211_rx_napi (err 0)
insmod: can't insert 'ath10k_core.ko': unknown symbol in module,[ 5.180000] ath10k_pci: Unknown symbol ath10k_warn (err 0)
or unknown para[ 5.184000] ath10k_pci: Unknown symbol ath10k_err (err 0)
meter
[ 5.192000] ath10k_pci: Unknown symbol ath10k_print_driver_info (err 0)
[ 5.200000] ath10k_pci: Unknown symbol ath10k_htt_hif_tx_complete (err 0)
[ 5.208000] ath10k_pci: Unknown symbol ath10k_htc_tx_completion_handler (err 0)
[ 5.212000] ath10k_pci: Unknown symbol ath10k_core_create (err 0)
[ 5.220000] ath10k_pci: Unknown symbol ath10k_htt_rx_pktlog_completion_handler (err 0)
[ 5.228000] ath10k_pci: Unknown symbol ath10k_core_destroy (err 0)
[ 5.236000] ath10k_pci: Unknown symbol ath10k_htc_rx_completion_handler (err 0)
[ 5.244000] ath10k_pci: Unknown symbol ath10k_core_register (err 0)
[ 5.248000] ath10k_pci: Unknown symbol ath10k_info (err 0)
[ 5.256000] ath10k_pci: Unknown symbol ath10k_htt_t2h_msg_handler (err 0)
[ 5.260000] ath10k_pci: Unknown symbol ath10k_core_unregister (err 0)
[ 5.268000] ath10k_pci: Unknown symbol ath10k_htt_txrx_compl_task (err 0)
insmod: can't insert 'ath10k_pci.ko': unknown symbol in module, or unknown parameter
cat: can't open '/proc/swd/lic/wlan_super_density': No such file or directory
[ 5.840000] CPU 0 Unable to handle kernel paging request at virtual address 03b083e4, epc == 800a42d0, ra == 8010f668
[ 5.848000] Oops[#1]:
[ 5.848000] CPU: 0 PID: 519 Comm: run Tainted: P 3.18.47 #1
[ 5.848000] task: 83b2a2c8 ti: 83bf2000 task.ti: 83bf2000
[ 5.848000] $ 0 : 00000000 00000001 83b2a2c8 772a9ae8
[ 5.848000] $ 4 : 03b083e0 00000004 0047e680 00480000
[ 5.848000] $ 8 : 00000000 84080018 800f1dcc 00000000
[ 5.848000] $12 : 7faf1c00 00000010 00c02e6c 00c02e78
[ 5.848000] $16 : 00000004 03b083c0 03b083e0 00bfc434
[ 5.848000] $20 : 00c02890 ffffffff 00000001 00bfc570
[ 5.848000] $24 : 00000002 772a9ac8
[ 5.848000] $28 : 83bf2000 83bf3ec0 00c02890 8010f668
[ 5.848000] Hi : 00000001
[ 5.848000] Lo : 00000043
[ 5.848000] epc : 800a42d0 0x800a42d0
[ 5.848000] Tainted: P
[ 5.848000] ra : 8010f668 0x8010f668
[ 5.848000] Status: 1100dc03 KERNEL EXL IE
[ 5.848000] Cause : 00800008
[ 5.848000] BadVA : 03b083e4
[ 5.848000] PrId : 00019750 (MIPS 74Kc)
[ 5.848000] Modules linked in: ath9k_common[0x83ba0000] ath9k_hw[0x83000000] ath[0x83bf8000] cfg80211[0x83bc0000] compat[0x83b58000]
[ 5.848000] Process run (pid: 519, threadinfo=83bf2000, task=83b2a2c8, tls=7732b440)
[ 5.848000] Stack : 838289f0 803e0000 80370000 80371aac 00000004 03b083c0 03b083e0 00bfc434
00c02890 8010f668 83bf2000 83bf3f10 00000000 80060888 1100dc03 00bfc3f4
00000003 00bfc3e4 00bfc434 800f1de4 00bfc02c 00000000 00000001 00bfc140
00bfc008 80062b5c 00000000 00000000 00000000 00000000 00000010 00c02e6c
00c02e78 00000002 00000000 00000001 00000fa6 00000000 00000004 00000002
...
[ 5.848000] Call Trace:[<8010f668>] 0x8010f668
[ 5.848000] [<80060888>] 0x80060888
[ 5.848000] [<800f1de4>] 0x800f1de4
[ 5.848000] [<80062b5c>] 0x80062b5c
[ 5.848000]
[ 5.848000]
Code: afb3001c afb20018 afb10014 <8c830004> 3c02dead 24424ead 10620004 00808021 3c058037
[ 6.024000] ---[ end trace 7d4272acd330e8a0 ]---
[ 6.048000] CPU 0 Unable to handle kernel paging request at virtual address 03b083c0, epc == 8010f240, ra == 8008359c
[ 6.056000] Oops[#2]:
[ 6.056000] CPU: 0 PID: 519 Comm: run Tainted: P D 3.18.47 #1
[ 6.056000] task: 83b2a2c8 ti: 83bf2000 task.ti: 83bf2000
[ 6.056000] $ 0 : 00000000 00000000 00000001 83b2a2c8
[ 6.056000] $ 4 : 03b083c0 00000001 83a82340 0000023a
[ 6.056000] $ 8 : 00000001 00000239 83a83520 00000001
[ 6.056000] $12 : ffffff80 00080011 ffffffff 0000000a
[ 6.056000] $16 : 03b083c0 83a82340 83b2a738 00000001
[ 6.056000] $20 : 83a82384 83a82340 00000000 83a82384
[ 6.056000] $24 : 00000000 800dd770
[ 6.056000] $28 : 83bf2000 83bf3c98 00030002 8008359c
[ 6.056000] Hi : 00000001
[ 6.056000] Lo : 687d2800
[ 6.056000] epc : 8010f240 0x8010f240
[ 6.056000] Tainted: P D
[ 6.056000] ra : 8008359c 0x8008359c
[ 6.056000] Status: 1100dc03 KERNEL EXL IE
[ 6.056000] Cause : 00800008
[ 6.056000] BadVA : 03b083c0
[ 6.056000] PrId : 00019750 (MIPS 74Kc)
[ 6.056000] Modules linked in: ath9k_common[0x83ba0000] ath9k_hw[0x83000000] ath[0x83bf8000] cfg80211[0x83bc0000] compat[0x83b58000]
[ 6.056000] Process run (pid: 519, threadinfo=83bf2000, task=83b2a2c8, tls=7732b440)
[ 6.056000] Stack : 83a82384 8010f3d0 83b2a738 83b2a2c8 83b2a2c8 83a82340 83b2a738 00000001
83a82384 8008359c 00000fdd 803e2cdc 80440000 80442918 803e2cdc 800a87a4
00030002 8006a918 8036c908 83bf3cfc 83bf3e08 8036afc0 0000000b 803e0000
83b90dc0 83a82340 00000000 83a82384 00030002 800733f8 00030002 8036afc0
00000001 ffffffff 00000002 0000000b 8036baf8 03b083e4 83b2a2c8 83bf3e08
...
[ 6.056000] Call Trace:[<8010f3d0>] 0x8010f3d0
[ 6.056000] [<8008359c>] 0x8008359c
[ 6.056000] [<800a87a4>] 0x800a87a4
[ 6.056000] [<8006a918>] 0x8006a918
[ 6.056000] [<800733f8>] 0x800733f8
[ 6.056000] [<8007794c>] 0x8007794c
[ 6.056000] [<800a42d0>] 0x800a42d0
[ 6.056000] [<8010f668>] 0x8010f668
[ 6.056000] [<800d08b4>] 0x800d08b4
[ 6.056000] [<800e3790>] 0x800e3790
[ 6.056000] [<800d4d28>] 0x800d4d28
[ 6.056000] [<800ee864>] 0x800ee864
[ 6.056000] [<80060820>] 0x80060820
[ 6.056000] [<8006a880>] 0x8006a880
[ 6.056000] [<800f1dcc>] 0x800f1dcc
[ 6.056000] [<8010f668>] 0x8010f668
[ 6.056000] [<800a42d0>] 0x800a42d0
[ 6.056000] [<8010f668>] 0x8010f668
[ 6.056000] [<80060888>] 0x80060888
[ 6.056000] [<800f1de4>] 0x800f1de4
[ 6.056000] [<80062b5c>] 0x80062b5c
[ 6.056000]
[ 6.056000]
Code: afb20018 afb10014 00808021 <c2030000> 2462ffff e2020000 1040fffc 00000000 24020001
[ 6.292000] ---[ end trace 7d4272acd330e8a1 ]---
[ 6.300000] Fixing recursive fault but reboot is needed!
[ 6.320000] mtdoops: ready 5, 6 (no erase)
[ 6.332000] mtdoops: ready 6, 7 (no erase)
[ 33.408000] random: nonblocking pool is initialized

后面还有几次不正常启动的 都跟下面这个差不多

[ 0.464000] console [ttyS0] enabled
[ 0.464000] console [ttyS0] enabled
[ 0.472000] bootconsole [early0] disabled
[ 0.472000] bootconsole [early0] disabled
[ 0.492000] m25p80 spi0.0: found s25fl064k, expected m25p80
[ 0.496000] m25p80 spi0.0: s25fl064k (8192 Kbytes)
[ 0.504000] mtd: spi0.0: partitioning exceeds flash size, truncating
[ 0.508000] mtd: spi0.0: partitioning exceeds flash size, truncating
[ 0.516000] mtd: spi0.0: skipping zero sized partition
[ 0.520000] 9 cmdlinepart partitions found on MTD device spi0.0
[ 0.528000] Creating 9 MTD partitions on "spi0.0":
[ 0.532000] 0x000000000000-0x00000001c000 : "uboot"
[ 0.536000] 0x00000001c000-0x000000020000 : "SBI"
[ 0.544000] 0x000000020000-0x000000040000 : "custom"
[ 0.548000] 0x000000040000-0x000000050000 : "DTB"
[ 0.556000] 0x000000050000-0x000000060000 : "CAL"
[ 0.560000] 0x000000060000-0x000000070000 : "elog"
[ 0.564000] mtdoops: Attached to MTD device 5
[ 0.572000] 0x000000070000-0x000000090000 : "config"
[ 0.576000] 0x000000090000-0x0000000b0000 : "config2"
[ 0.584000] 0x0000000b0000-0x000000800000 : "firmware"
[ 0.588000] Split rootfs Part: off:0x1ed2e8 len:0x612d18
[ 0.592000] 0x0000001ed2e8-0x000000800000 : "rootfs"
[ 0.600000] 1 squashfs-split partitions found on MTD device rootfs
[ 0.608000] 0x0000003f8000-0x000000800000 : "rootfs_data"
[ 0.612000] mtd: device 9 (rootfs) set to be root filesystem
[ 0.628000] switch0: Atheros AR8337 rev. 2 switch registered on ag71xx-mdio.0
[ 0.712000] libphy: ag71xx_mdio: probed. phys=0x01ff001f
[ 1.288000] eth0: Atheros AG71xx at 0xb9000000, irq 4, mode:SGMII
[ 1.292000] PPP generic driver version 2.4.2
[ 1.300000] PPP MPPE Compression module registered
[ 1.304000] NET: Registered protocol family 24
[ 1.308000] PPTP driver version 0.8.5
[ 1.312000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.320000] ehci-pci: EHCI PCI platform driver
[ 1.324000] ehci-platform: EHCI generic platform driver
[ 1.328000] ehci-platform ehci-platform.0: EHCI Host Controller
[ 1.336000] ehci-platform ehci-platform.0: new USB bus registered, assigned bus number 1
[ 1.344000] ehci-platform ehci-platform.0: irq 48, io mem 0x1b000000
[ 1.364000] ehci-platform ehci-platform.0: USB 2.0 started, EHCI 1.00
[ 1.368000] hub 1-0:1.0: USB hub found
[ 1.372000] hub 1-0:1.0: 1 port detected
[ 1.376000] ehci-platform ehci-platform.1: EHCI Host Controller
[ 1.384000] ehci-platform ehci-platform.1: new USB bus registered, assigned bus number 2
[ 1.396000] ehci-platform ehci-platform.1: irq 49, io mem 0x1b400000
[ 1.412000] ehci-platform ehci-platform.1: USB 2.0 started, EHCI 1.00
[ 1.416000] hub 2-0:1.0: USB hub found
[ 1.420000] hub 2-0:1.0: 1 port detected
[ 1.424000] usbcore: registered new interface driver usblp
[ 1.432000] usbcore: registered new interface driver usb-storage
[ 1.440000] input: gpio-keys-polled as /devices/platform/gpio-keys-polled/input/input0
[ 1.448000] Netfilter messages via NETLINK v0.30.
[ 1.452000] nf_conntrack version 0.5.0 (944 buckets, 3776 max)
[ 1.460000] xt_time: kernel timezone is -0000
[ 1.464000] gre: GRE over IPv4 demultiplexor driver
[ 1.468000] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 1.476000] TCP: cubic registered
[ 1.480000] NET: Registered protocol family 10
[ 1.484000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 1.492000] NET: Registered protocol family 17
[ 1.496000] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
[ 1.508000] Ebtables v2.0 registered
[ 1.512000] 8021q: 802.1Q VLAN Support v1.8
[ 1.524000] VFS: Mounted root (squashfs filesystem) readonly on device 31:9.
[ 1.532000] Freeing unused kernel memory: 208K (803fc000 - 80430000)
init started: BusyBox v1.22.1 (2017-06-21 14:37:16 CST)
starting pid 350, tty '': 'sh /etc/init.d/rcS S start'
mount: mounting usbfs on /proc/bus/usb failed: No such file or directory
mount: mounting nodev on /sys/kernel/debug failed: No such file or directory
Fri Jan 1 00:00:00 UTC 2010
Try backup config
[ 3.612000] Loading modules backported from Linux version wt-2016-10-03-1-g6fcb1a6
[ 3.620000] Backport generated by backports.git backports-20160324-9-g0e38f5c
[ 4.048000] swd: module license 'Proprietary' taints kernel.
[ 4.056000] Disabling lock debugging due to kernel taint
[ 4.064000] SuperWRT Network Engine installed!
[ 4.332000] ieee80211 phy0: Atheros AR9561 Rev:0 mem=0xb8100000, irq=47
[ 4.508000] PCI: Enabling device 0000:00:00.0 (0000 -> 0002)
[ 4.516000] ath10k_pci 0000:00:00.0: pci irq legacy oper_irq_mode 1 irq_mode 0 reset_mode 0
[ 4.716000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/pre-cal-pci-0000:00:00.0.bin failed with error -2
[ 4.724000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/cal-pci-0000:00:00.0.bin failed with error -2
[ 4.960000] ath10k_pci 0000:00:00.0: qca9887 hw1.0 target 0x4100016d chip_id 0x004000ff sub 0000:0000
[ 4.968000] ath10k_pci 0000:00:00.0: kconfig debug 0 debugfs 0 tracing 0 dfs 1 testmode 0
[ 4.980000] ath10k_pci 0000:00:00.0: firmware ver 10.2.4-1.0-00013 api 5 features no-p2p,ignore-otp,skip-clock-init,mfp crc32 14a57ac6
[ 5.032000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/QCA9887/hw1.0/board-2.bin failed with error -2
[ 5.044000] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/QCA9887/hw1.0/board.bin failed with error -2
[ 5.056000] ath10k_pci 0000:00:00.0: board_file api 1 bmi_id N/A crc32 00000000
[ 5.148000] ath10k_pci 0000:00:00.0: failed to get board id form OTP: -122
[ 6.140000] ath10k_pci 0000:00:00.0: htt-ver 2.1 wmi-op 5 htt-op 2 cal file max-sta 128 raw 0 hwcrypto 1
[ 6.264000] ------------[ cut here ]------------
[ 6.268000] WARNING: CPU: 0 PID: 458 at /home/yangbo/workspace/swrt/linux/kernels/linux-3.18.47/mm/mmap.c:2785 0x800e7fb8()
[ 6.280000] Modules linked in: ath10k_pci[0x83248000] ath10k_core[0x83280000] ath9k[0x83150000] ath9k_common[0x830f0000] ath9k_hw[0x83100000] ath[0x83bf8000] swdgpl[0x8300e000] swd(P)[0x83ba0000] mac80211[0x83080000] cfg80211[0x83bc0000] compat[0x83b50000]
[ 6.304000] CPU: 0 PID: 458 Comm: run.sh Tainted: P 3.18.47 #1
[ 6.308000] Stack : 00000006 00000000 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
...
[ 6.348000] Raw Call Trace:[<800731f8>] 0x800731f8
[ 6.352000] [<800731f8>] 0x800731f8
[ 6.356000] [<8008294c>] 0x8008294c
[ 6.360000] [<800e7fb8>] 0x800e7fb8
[ 6.364000] [<80082a04>] 0x80082a04
[ 6.364000] [<800e7fb8>] 0x800e7fb8
[ 6.368000] [<800efadc>] 0x800efadc
[ 6.372000] [<800e3520>] 0x800e3520
[ 6.376000] [<8006a880>] 0x8006a880
[ 6.380000] [<80080538>] 0x80080538
[ 6.384000] [<8006a8c8>] 0x8006a8c8
[ 6.388000] [<800836a4>] 0x800836a4
[ 6.392000] [<8008acfc>] 0x8008acfc
[ 6.396000] [<800f0ea8>] 0x800f0ea8
[ 6.400000] [<800848c8>] 0x800848c8
[ 6.404000] [<8008d40c>] 0x8008d40c
[ 6.404000] [<8006a8e8>] 0x8006a8e8
[ 6.408000] [<80071a3c>] 0x80071a3c
[ 6.412000] [<800779c0>] 0x800779c0
[ 6.416000] [<8009f94c>] 0x8009f94c
[ 6.420000] [<8009f94c>] 0x8009f94c
[ 6.424000] [<8006a918>] 0x8006a918
[ 6.428000] [<8009bfe0>] 0x8009bfe0
[ 6.432000] [<80066da8>] 0x80066da8
[ 6.436000] [<80060888>] 0x80060888
[ 6.440000] [<8007273c>] 0x8007273c
[ 6.440000] [<800609ac>] 0x800609ac
[ 6.444000]
[ 6.448000] Call Trace:
[ 6.448000] [<800731f8>] 0x800731f8
[ 6.452000]
[ 6.456000] ---[ end trace a397bc181409aa95 ]---
[ 6.460000] BUG: Bad rss-counter state mm:83a82b60 idx:1 val:3
Segmentation fault
[ 6.588000] random: svld urandom read with 25 bits of entropy available
[ 7.192000] Kernel bug detected[#1]:
[ 7.192000] CPU: 0 PID: 512 Comm: svld Tainted: P W 3.18.47 #1
[ 7.192000] task: 83b322c8 ti: 82ec8000 task.ti: 82ec8000
[ 7.192000] $ 0 : 00000000 00000000 00000001 83b322c8
[ 7.192000] $ 4 : 82ecf2d8 00000001 800e0000 fffffffc
[ 7.192000] $ 8 : 00000000 83b2b710 00000001 00000000
[ 7.192000] $12 : ffffff80 77e033a0 00401294 77de34bc
[ 7.192000] $16 : 83b2b700 82ecafac 82ecafb4 00000001
[ 7.192000] $20 : 00000100 00000200 80374230 00000001
[ 7.192000] $24 : 77dfb370 77da0b20
[ 7.192000] $28 : 82ec8000 82ec9d98 82ecf2d8 800e19d0
[ 7.192000] Hi : 000000b6
[ 7.192000] Lo : 0006f8bf
[ 7.192000] epc : 800eba28 0x800eba28
[ 7.192000] Tainted: P W
[ 7.192000] ra : 800e19d0 0x800e19d0
[ 7.192000] Status: 1100dc03 KERNEL EXL IE
[ 7.192000] Cause : 00800034
[ 7.192000] PrId : 00019750 (MIPS 74Kc)
[ 7.192000] Modules linked in: ath10k_pci[0x83248000] ath10k_core[0x83280000] ath9k[0x83150000] ath9k_common[0x830f0000] ath9k_hw[0x83100000] ath[0x83bf8000] swdgpl[0x8300e000] swd(P)[0x83ba0000] mac80211[0x83080000] cfg80211[0x83bc0000] compat[0x83b50000]
[ 7.192000] Process svld (pid: 512, threadinfo=82ec8000, task=83b322c8, tls=77e92440)
[ 7.192000] Stack : 80000000 7f879000 83b07000 8340eaa4 82ecaf78 82eca840 82ec9e20 00000000
00000000 00400000 77d94000 83b437e8 7fab4f85 800e19d0 00000002 004647d0
7fab4f85 00000000 77d94000 834d7068 00000000 82ecaec8 83a83520 00000000
00000001 83a83564 00463ad4 00000002 004647d0 800e7eec 00000003 00000000
ffffff9c 83869e00 83a83520 00400000 7f87a000 800003c7 8325b000 8325b000
...
[ 7.192000] Call Trace:[<800e19d0>] 0x800e19d0
[ 7.192000] [<800e7eec>] 0x800e7eec
[ 7.192000] [<8006a880>] 0x8006a880
[ 7.192000] [<80080538>] 0x80080538
[ 7.192000] [<8006a8c8>] 0x8006a8c8
[ 7.192000] [<800836a4>] 0x800836a4
[ 7.192000] [<800848c8>] 0x800848c8
[ 7.192000] [<80084948>] 0x80084948
[ 7.192000] [<80062b5c>] 0x80062b5c
[ 7.192000]
[ 7.192000]
Code: 8fbf0034 8e040004 8c820024 <00020336> 24820020 c0430000 2465ffff e0450000 10a0fffc
[ 7.396000] ---[ end trace a397bc181409aa96 ]---
[ 7.404000] Fixing recursive fault but reboot is needed!
[ 7.420000] mtdoops: ready 13, 14 (no erase)
[ 33.192000] random: nonblocking pool is initialized

[terra]

貌似内存或Flash有问题。有几种可能，第一，可能需要RAM降频跑，第二，可能RAM供电有问题，第三，可能RAM有虚焊，第四，可能你的Flash有问题，或者可能你外接线了。

[x140_g]

貌似内存或Flash有问题。有几种可能，第一，可能需要RAM降频跑，第二，可能RAM供电有问题，第三，可能RAM有虚焊，第四，可能你的Flash有问题，或者可能你外接线了。

我换上原来的flash ， 开关几次什么问题都没有， 按照你以上的答复是不是就剩下那个flash有问题这个选项了？
